Adjusting tailpipe

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2005 Porsche 911, 2004 Porsche 911, 2003 Porsche 911, 2002 Porsche 911, and 2001 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

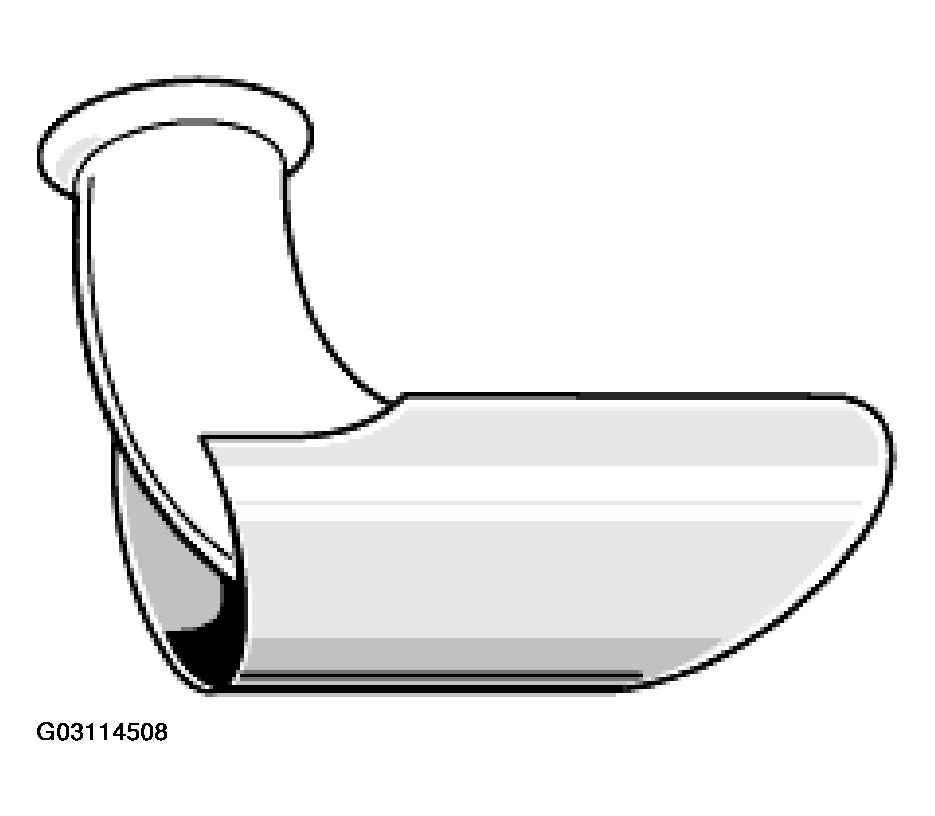

Fig 1: Identifying Tailpipe

Courtesy of PORSCHE OF NORTH AMERICA, INC.

Unscrew exhaust tailpipe. To do so, unscrew the fastening nut (wrench size 16) until the tail pipe can be moved in the flange area.

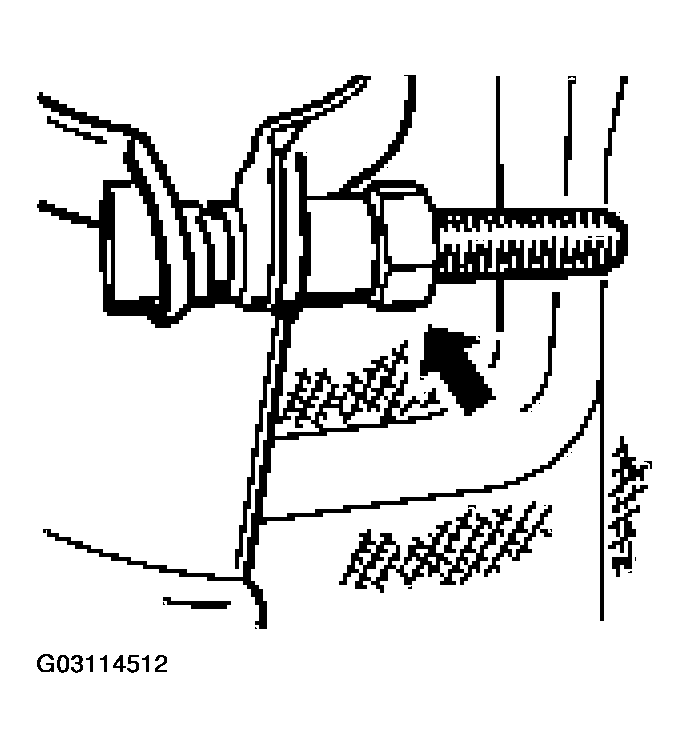

Fig 2: Unscrewing Exhaust Tailpipe
Courtesy of PORSCHE OF NORTH AMERICA, INC.
Adjust tailpipe until the upper edge of the tail pipe is horizontal and runs parallel to the rear spoiler.

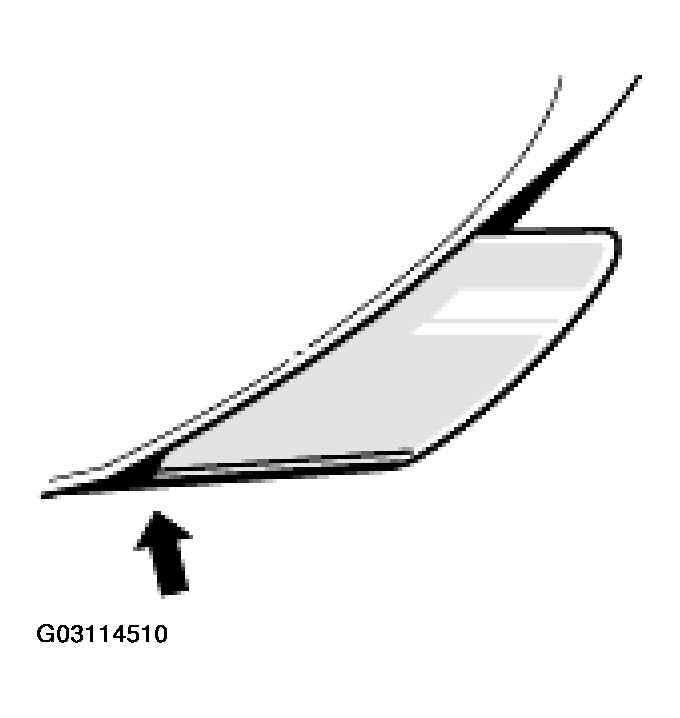

Fig 3: Adjusting Tailpipe
Courtesy of PORSCHE OF NORTH AMERICA, INC.
The tail pipe must have an even distance to the rear panel. The dimension -A- should be 25 to 26 mm.

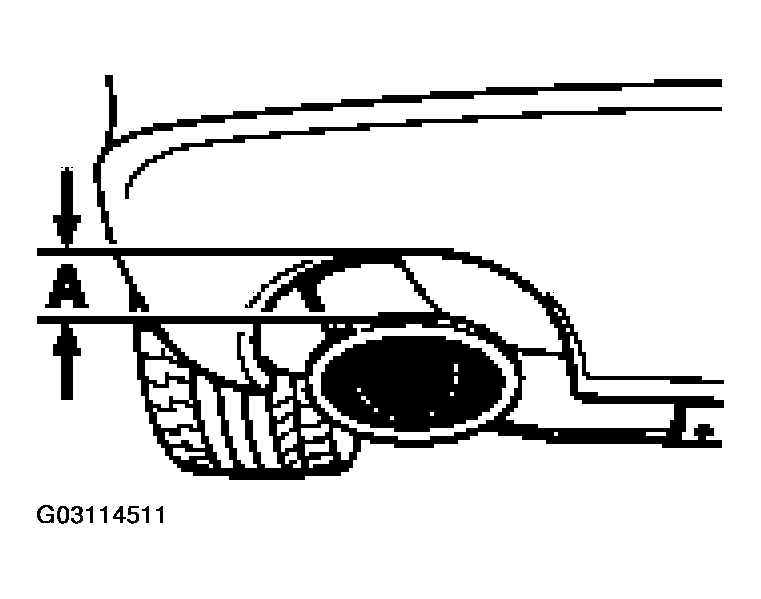

Fig 4: Identifying Tail Pipe Distance Dimension To Rear Panel
Courtesy of PORSCHE OF NORTH AMERICA, INC.
Tighten the fastening nuts of the tailpipe clamp to 30 Nm (22 ftlb.).

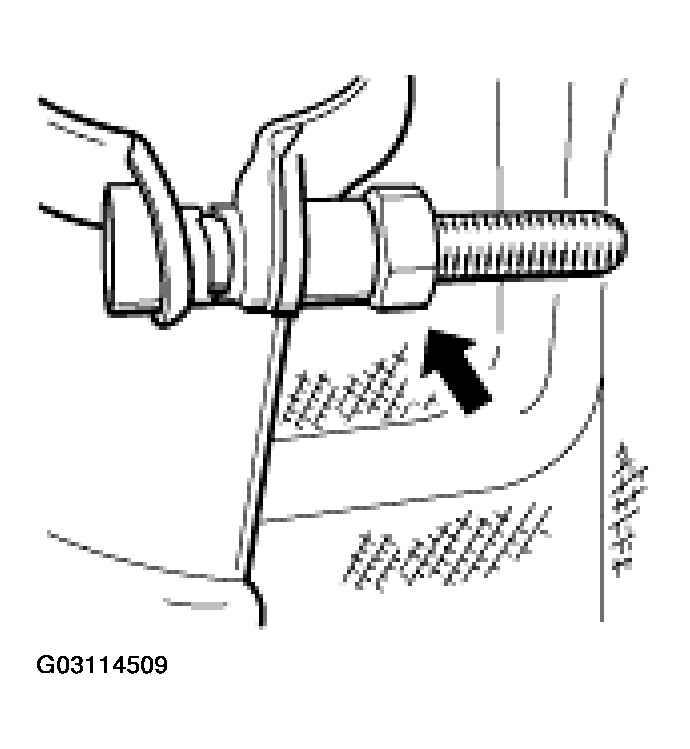

Fig 5: Tightening Fastening Nuts Of Tailpipe Clamp

Courtesy of PORSCHE OF NORTH AMERICA, INC.
