Adjusting tailpipe (as of MY '02)

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2005 Porsche 911, 2004 Porsche 911, 2003 Porsche 911, 2002 Porsche 911, and 2001 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

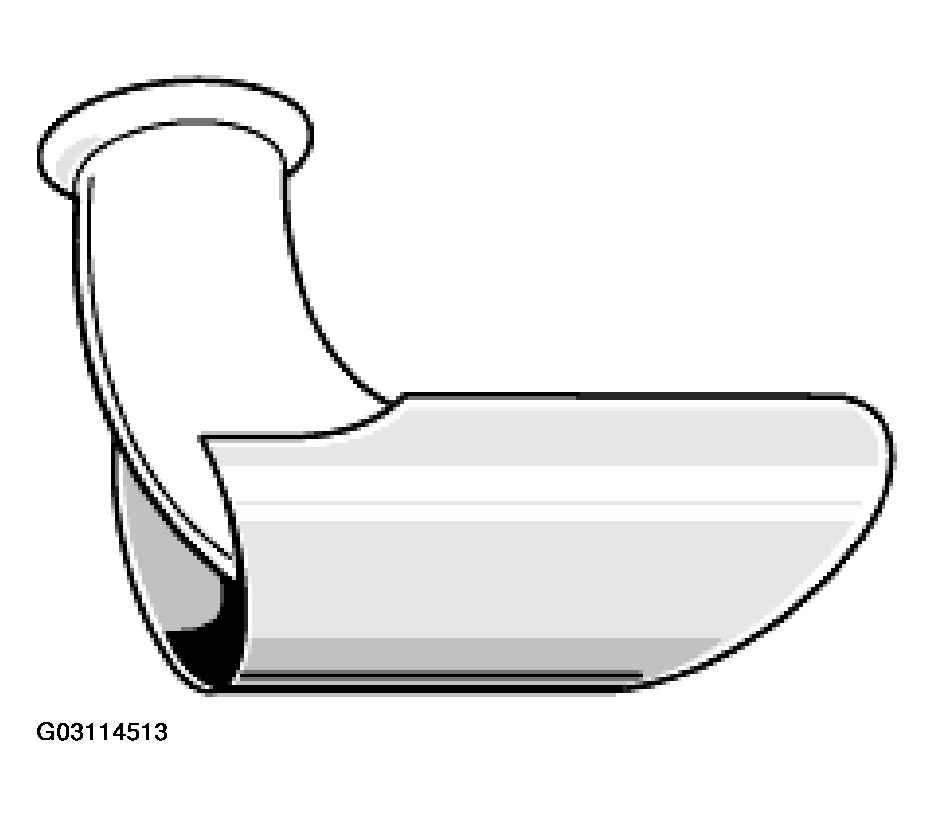

Fig 1: Identifying Tailpipe (As Of MY '02)

Courtesy of PORSCHE OF NORTH AMERICA, INC.

Unscrew exhaust tailpipe. To do so, unscrew the fastening nut (wrench size 16) until the tail pipe can be moved in the flange area.

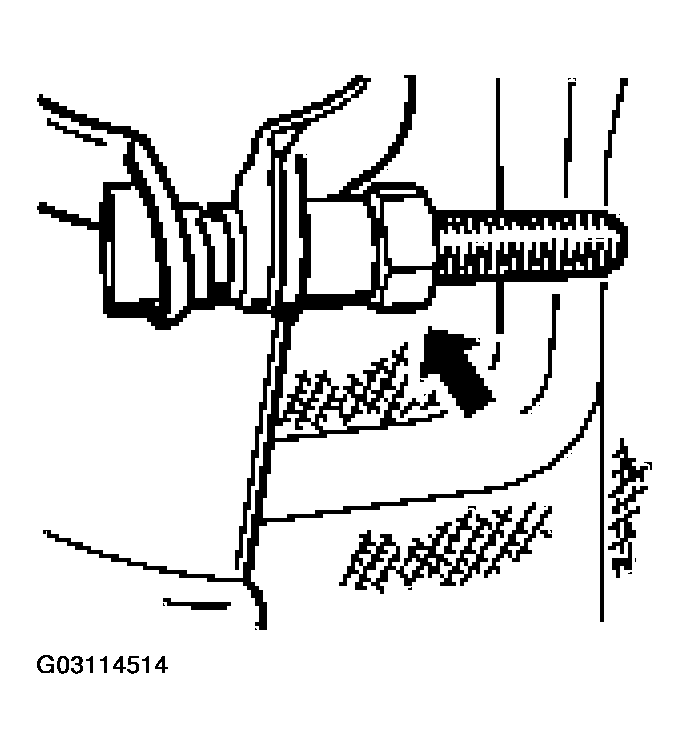

Fig 2: Unscrewing Exhaust Tailpipe (As Of MY '02)
Courtesy of PORSCHE OF NORTH AMERICA, INC.
Adjust tail pipe until the upper edge of the tail pipe is horizontal and runs parallel to the rear spoiler.
The tailpipe must have an even distance to the rear panel. The dimension -A- must be 22 mm.

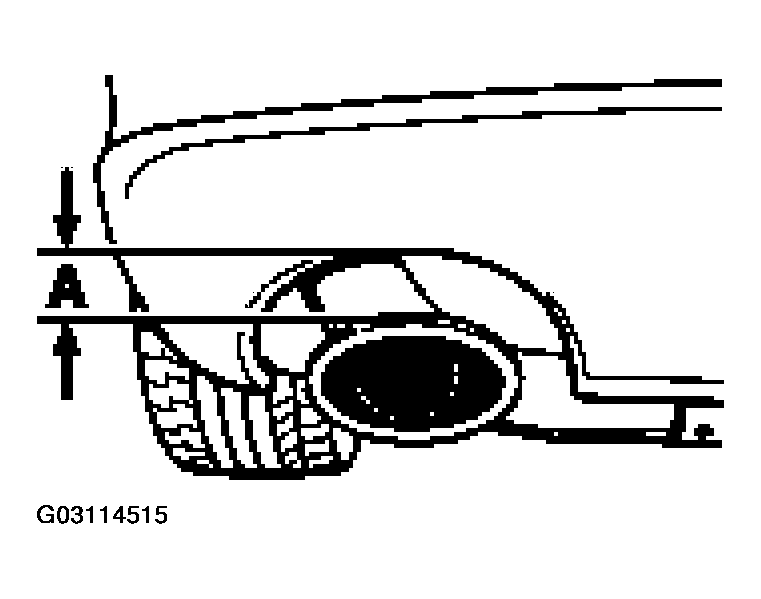

Fig 3: Identifying Tailpipe Distance Dimension To Rear Panel (As Of MY '02)
Courtesy of PORSCHE OF NORTH AMERICA, INC.
Tighten the fastening nuts of the tailpipe clamp to 30 Nm (22 ftlb.).

Fig 4: Tightening Fastening Nuts Of Tailpipe Clamp (As Of MY '02)
Courtesy of PORSCHE OF NORTH AMERICA, INC.
Loosen the tightening nut on the underside of the tailpipe.

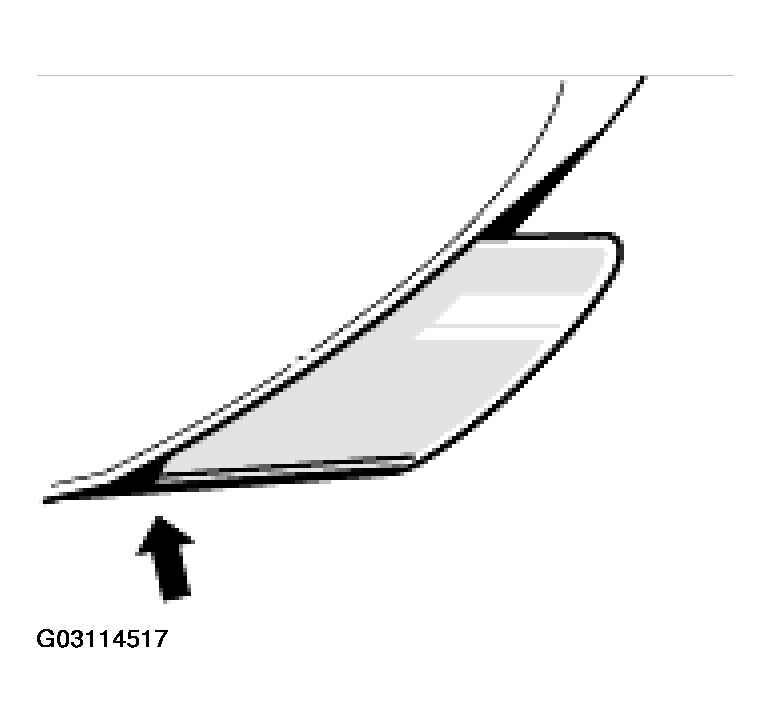

Fig 5: Locating Tailpipe (As Of MY '02)
Courtesy of PORSCHE OF NORTH AMERICA, INC.
Move the tailpipe until the projection from the body -Dimension B- is 7 to 10 mm.

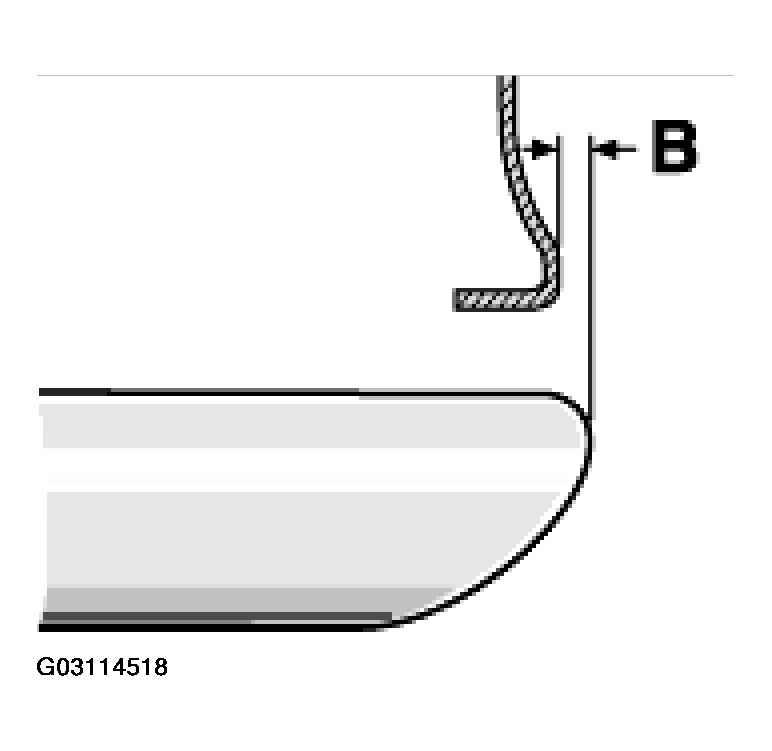

Fig 6: Identifying Dimension Of Tailpipe Projection From Body (As Of MY '02)
Courtesy of PORSCHE OF NORTH AMERICA, INC.
Tighten tightening nut onto the underside of the tailpipe to 23 Nm (17 ftlb.).

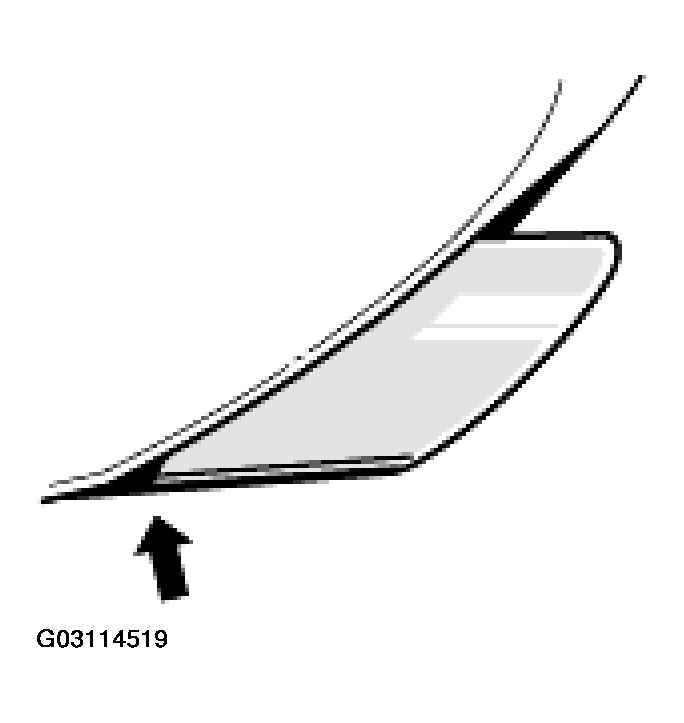

Fig 7: Locating Tailpipe (As Of MY '02)

Courtesy of PORSCHE OF NORTH AMERICA, INC.
