Removing front footwell outlet vent

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

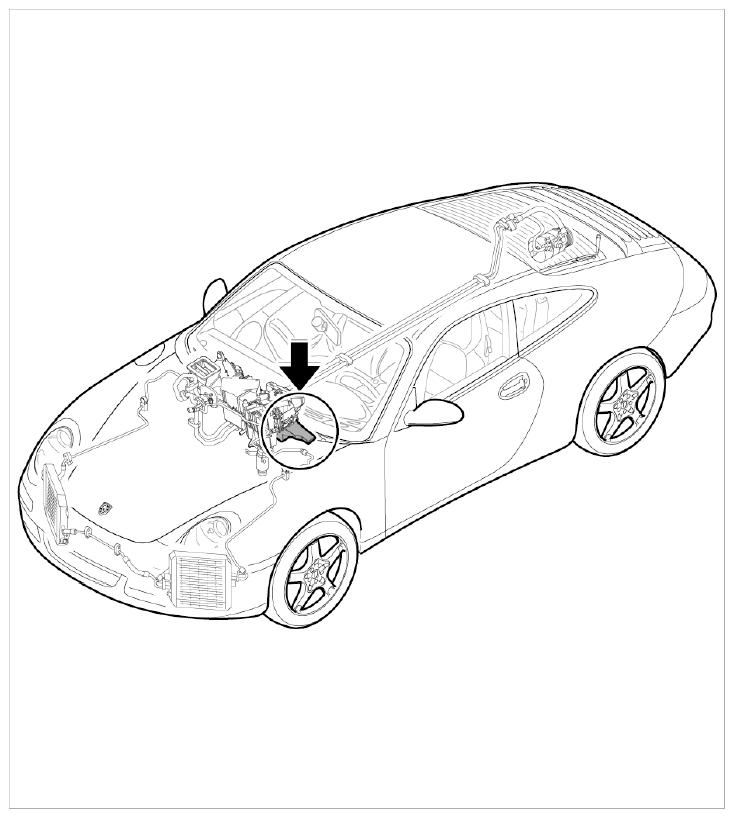

Fig 1: Identifying Installation Position Of Air Guide

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Unscrew the fastening screw at the left -1- and right -2- of the heater/air-conditioning unit.

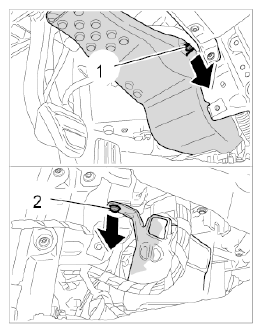

Fig 2: Removing Fastening Screws
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Pull the footwell outlet vent down out of the heater/air-conditioning unit and remove through the driver's side.

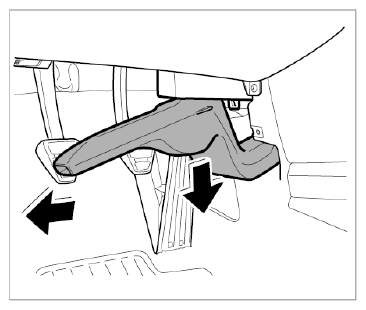

Fig 3: Removing Footwell Outlet Vent
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
