Installing front footwell outlet vent

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

Slide the footwell outlet vent in under the heater/air-conditioning unit through the driver's side and push it onto the heater/air-conditioning unit.

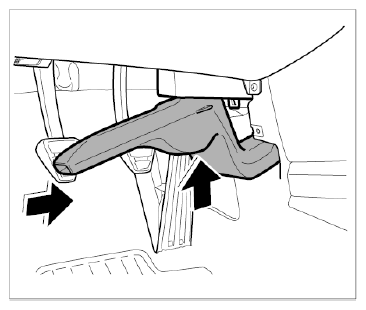

Fig 1: Inserting Footwell Outlet Vent
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Screw the footwell outlet vent to the heater/air-conditioning unit with the two fastening screws at the left -1- and right -2- . → Tightening torque: 1 Nm (0.5 ftlb.)

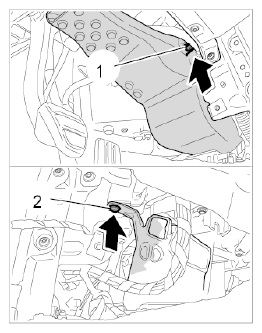

Fig 2: Locating Footwell Outlet Vent Screw
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
