Removing heat exchanger hose

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.
  1. Release the two top fastening clamps for the coolant hoses of the heat exchanger and slide them back over the hoses.

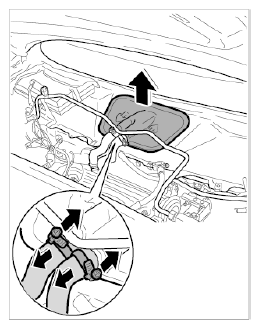

    Fig 1: Disconnecting Coolant Hoses Of Heat Exchanger
    G09830135Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Remove the two bottom spring-band clamps using the assembly tool for spring-band clamps Nr.72  .
