Installing heat exchanger hose

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.
  1. Push coolant hoses onto the heat exchanger and secure with the two fastening clamps.

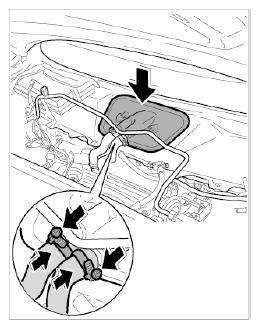

    Fig 1: Securing Coolant Hoses Of Heat Exchanger
    G09830136Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Fit the two bottom spring-band clamps using the assembly tool for spring-band clamps Nr.72  .
