Removing heat exchanger

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.
  1. Release the two fastening clamps for the coolant hoses of the heat exchanger and slide them back over the hoses.

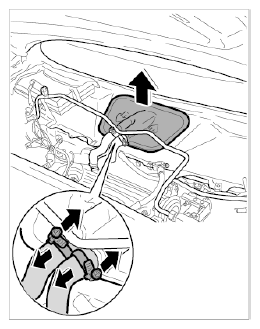

    Fig 1: Disconnecting Coolant Hoses Of Heat Exchanger
    G09830132Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Carefully lift off the cover of the heat exchanger and remove from the body.

    Information

    If the cover of the heat exchanger is damaged during removal, it must be replaced.

  3. Undo the two fastening screws -1-  and carefully lift the heat exchanger up and out.

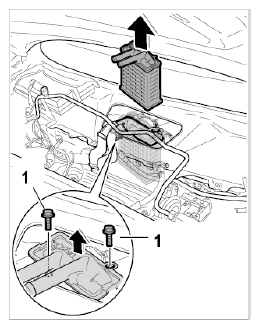

    Fig 2: Removing Heat Exchanger
    G09830133Courtesy of PORSCHE CARS NORTH AMERICA, INC.
