Removing Cover For Front Backrest

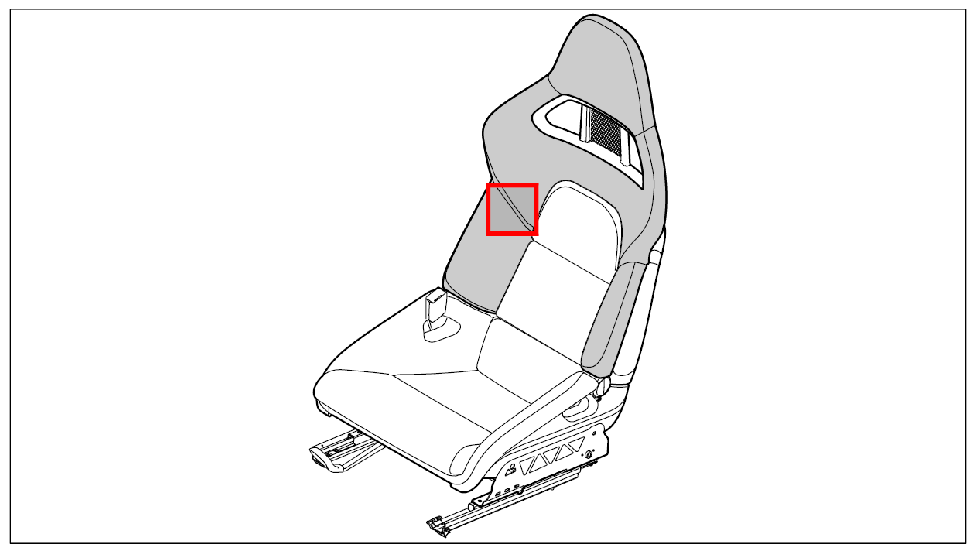

Fig 1: Identifying Cover For Front Backrest Position (Folding Sports Bucket Seat)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

→ Mask the backrest shell with adhesive tape.

→ Remove fastening clamps from the cover (joint).

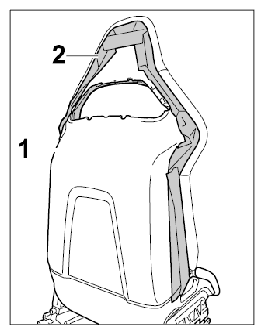

1. Mask the backrest shell -1-  in the marked area with adhesive tape -2-  (2-3 layers).
   Fig 2: Identifying Backrest Shell And Adhesive Tape

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

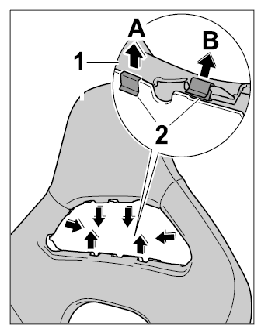

2. Pull cover -1-  out of the fastening clamps -2-  close to the belt strap guide -arrow A-  .

   If the fastening clamps -2-  are also pulled off, remove them from the cover immediately -arrow B-  .

   Fig 3: Removing Cover (Belt Strap Guide)

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
3. Fit the removed fastening clamps -2-  on the backrest frame.

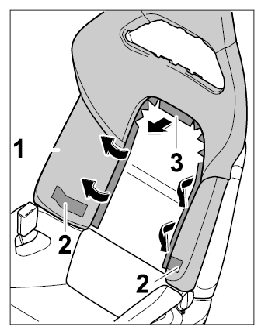

4. Pull off the cover -1-  at the Velcro fasteners -2-  and -3-  (-arrows-  ).
   Fig 4: Loosening Velcro Fasteners

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

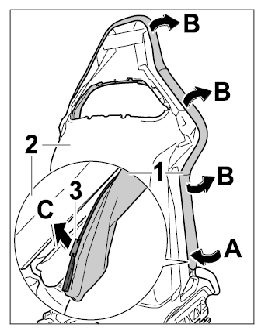

5. Fold over the cover -1-  , starting at the bottom -arrow A-  and carefully pull it out of the backrest shell -2-  (-arrows B-  ).

   If the fastening clamps -3-  are also pulled off, remove them from the cover immediately -arrow C-  .

   Fig 5: Removing Cover

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
6. Fit the removed fastening clamps -3-  on the backrest frame.

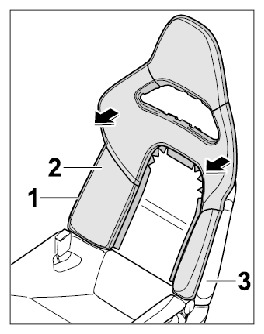

7. Remove cover -1-  and padding -2-  from the backrest shell -3-  (-arrows-  ).
   Fig 6: Removing Cover And Padding

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Information

   Only when replacing the cover.

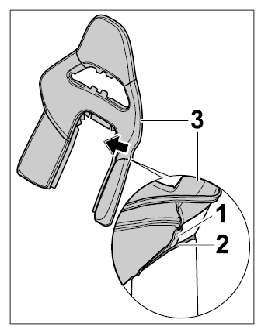

8. Carefully detach Velcro strip -1-  on the cover from the Velcro fastener on the front of the padding -2-  (-arrow-  ).
9. Take off the cover -3-  .
Fig 7: Detaching Cover From Padding
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
