Installing Cover For Front Backrest

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

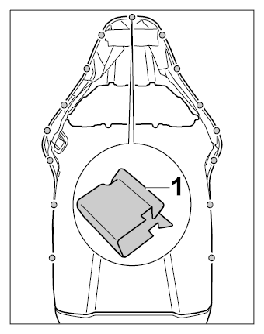

Check fastening clamps -1- on the outside of the backrest shell and replace them if necessary.

Fig 1: Identifying Clamps
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

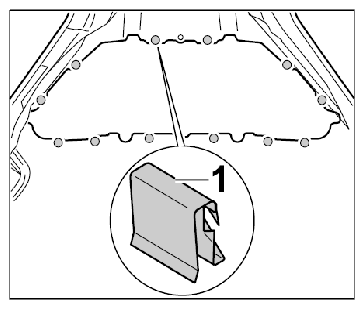

Check fastening clamps -1- close to the belt guide and replace them if necessary.

Fig 2: Identifying Fastening Clamps
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Information

Only when replacing the cover.

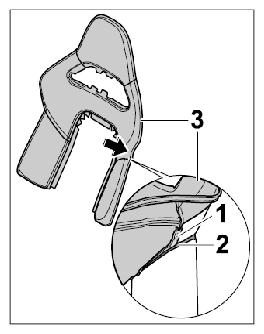

Position cover -3- on the front of the padding -2- .
Align Velcro strip -1- on the cover with the Velcro fastener on the padding -2- and secure it -arrow- .

Fig 3: Joining Cover And Padding

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Position cover -1- and padding -2- on the backrest shell -3- and straighten it -arrows- .

Fig 4: Securing Cover (Belt Guide)
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

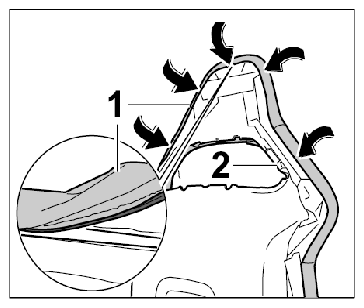

Press joint on cover -1- into the backrest shell -2- near the top of the headrest -arrows- .

Fig 5: Securing Cover
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

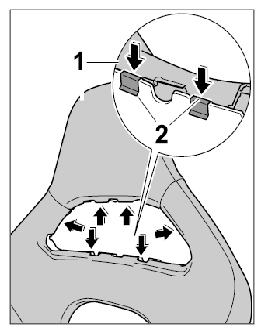

Press joint on cover -1- into the fastening clamps -2- near the belt strap guide -arrows- .

Fig 6: Pressing Joint On Cover
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

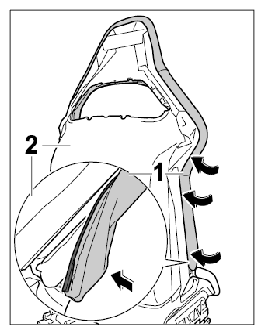

Press cover -1- into the backrest shell -2- at the sides -arrows- .

Fig 7: Securing Cover
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

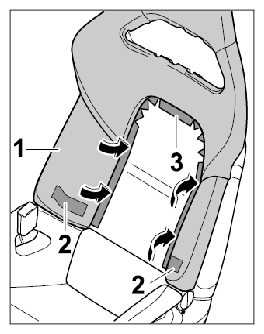

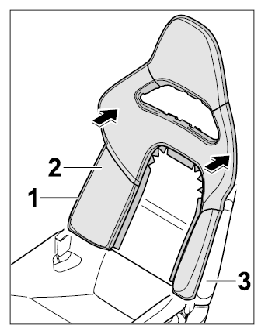

Align cover -1- with the side bolsters.

Fig 8: Pressing On Velcro Fasteners
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Information

Make sure the Velcro fasteners join cleanly.
Press on Velcro fasteners -2- and -3- (-arrows- ).

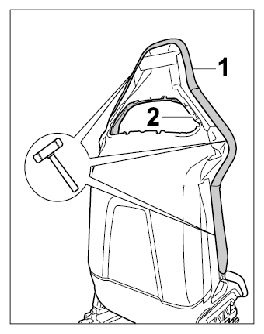

Press joint on cover -1- into the backrest shell -2- at the sides using a plastic wedge and secure by tapping gently (with a plastic hammer).

Fig 9: Securing Cover
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

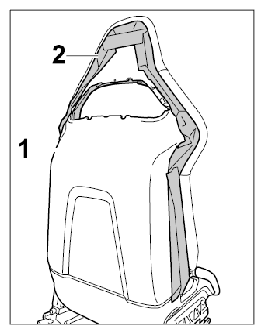

Remove adhesive tape -2- from the backrest shell -1- .

Fig 10: Identifying Adhesive Tape And Backrest Shell
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
