Removing Guide For Seat Belt

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove guide for seat belt -1-  at top -Arrow A-  .
  2. Unscrew fastening screw -2-  and remove push button -3- -Arrow B-  .

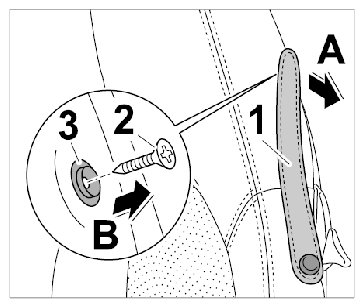

    3. Fig 1: Loosening Guide For Seat Belt At Top
    G09830017Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  3. Press out cap -2-  and unscrew fastening screw -3-  with spacer -4-  .

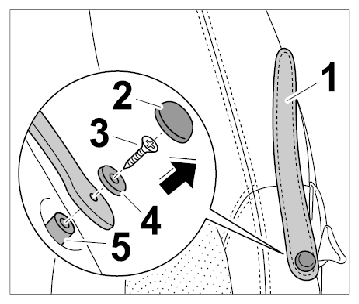

    Fig 2: Loosening Guide For Seat Belt At Bottom
    G09830018Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  4. Remove guide for seat belt -1-  and sleeve -5-  .
