Installing Guide For Seat Belt

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

Information

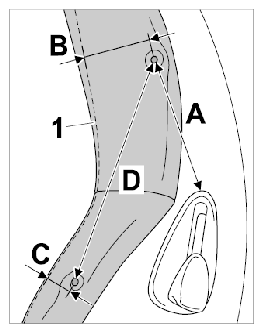

If the backrest cover -1- has been replaced after repairs, the seat-belt guide mounting points must be measured again and marked.

Mark upper mounting point with the dimensions -A= 95 mm- and -B= 50 mm- .
Mark lower mounting point with the dimensions -C= 25 mm- and -D= 155 mm- .

Fig 1: Identifying Backrest Cover And Mark Of Seat-Belt Guide Mounting Points

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

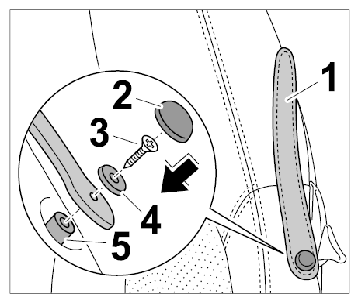

Position seat-belt guide -1- with sleeve -5- with the aid of the marking on the backrest cover.
Tighten fastening screw -3- with spacer -4- .

Fig 2: Positioning Seat-Belt Guide
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

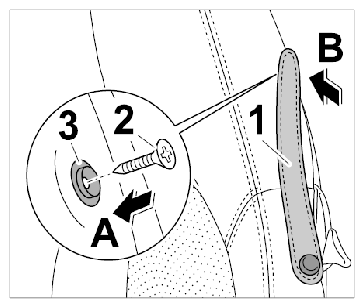

Press in -2- cap
Position push button -3- with the aid of the marking on the backrest cover -Arrow A- and screw down with the fastening screw -2- .
Press seat-belt guide -1- into push button -3- at top -Arrow B- .

Fig 3: Pressing Seat-Belt Guide At Top

Courtesy of PORSCHE CARS NORTH AMERICA, INC.
