Installing Cover For Backrest

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

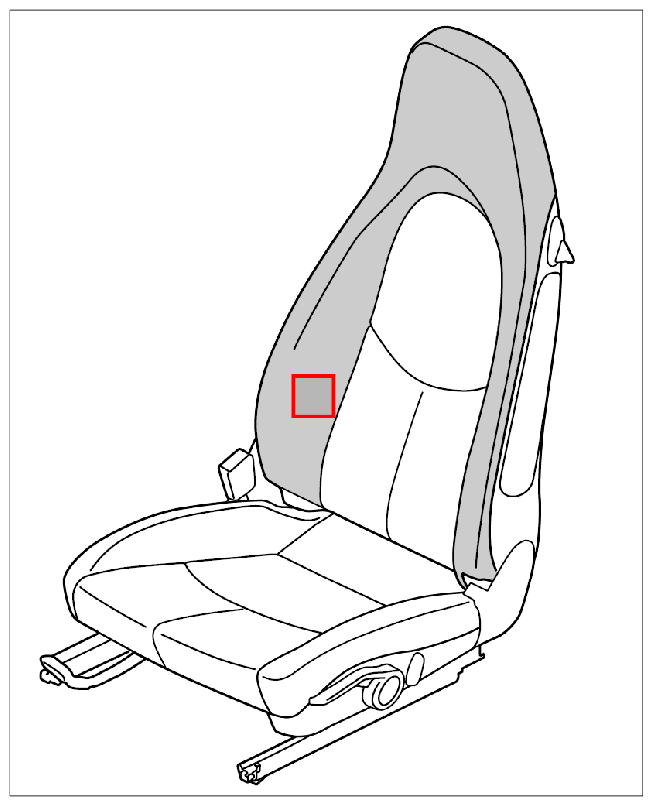

Fig 1: Identifying Cover For Front Backrest Position

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Check clamps -1- , and replace if necessary.

Fig 2: Checking Clamps
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

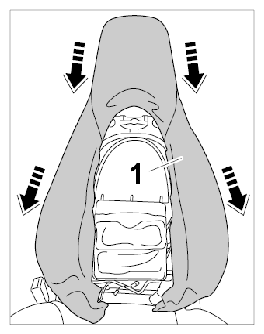

Pull on cover for backrest -1- and align with contour of padding.

Fig 3: Installing Cover For Backrest
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

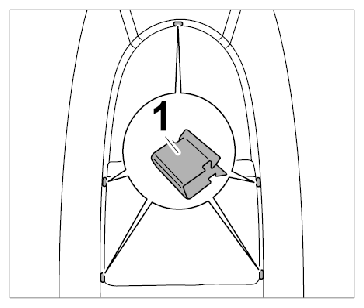

Check fastening clip -3- , and replace if necessary.
Press plastic strip -2- on cover for backrest -1- into the fixing clips -3- .

Fig 4: Locating Fastening Clip Of Cover For Backrest

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

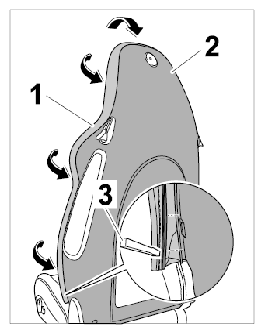

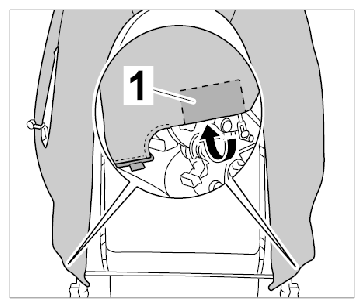

Fold cover piping -1- at the sides in direction of arrow.

Fig 5: Folding Cover For Backrest At Sides
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

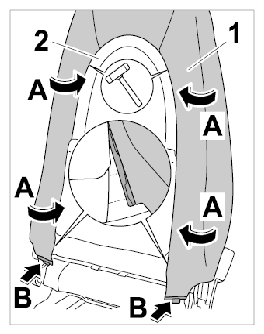

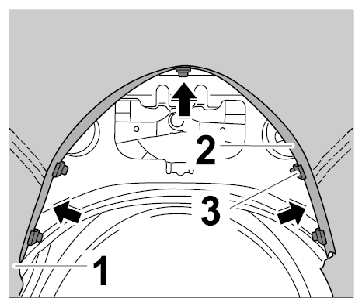

Press connection of backrest cover -1- at the rear into the cushion carrier -2- -Arrows A- and tap gently into place (plastic hammer).
Engage connection of backrest cover -1- at the bottom into the cushion carrier -Arrows B- .

Fig 6: Pressing Connection Of Backrest Cover

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

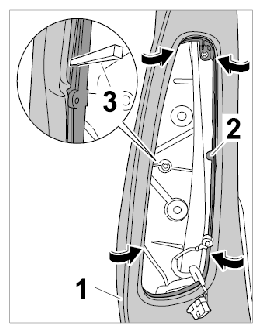

Press connection of backrest cover -1- into the side airbag frame -2- with a plastic wedge -3- .

Fig 7: Pressing Connection Of Backrest Cover Into Side Airbag Frame
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Install side airbag. → INSTALLING SIDE AIRBAG
Engage cover piping -1- right and left into backrest frame -2- .

Fig 8: Engaging Cover Piping
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

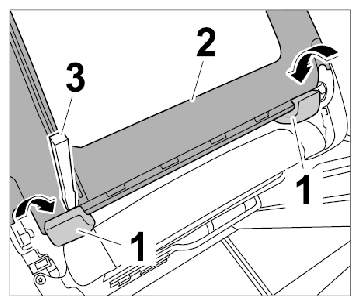

Press cover for backrest -1- into the cushion carrier -2- lower left and right using a plastic wedge -3- .

Fig 9: Pressing Cover For Backrest At Bottom
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

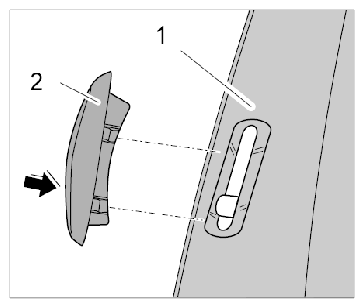

Position collar -2- on the backrest cover -1- and press in until it clicks into place.

Fig 10: Installing Collar
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

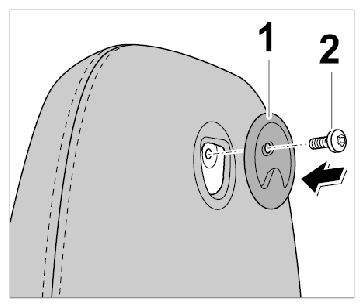

Position coat hook -1- and screw down with the fastening screw -2- .

Fig 11: Installing Coat Hook
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Fig 1: Identifying Cover For Front Backrest Position

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Fit cover for backrest and align with contour of padding.
Check fastening clips -3- , and replace if necessary.
Press plastic strip -2- on cover for backrest -1- into the fixing clips -3- .

Fig 2: Locating Cover For Backrest

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

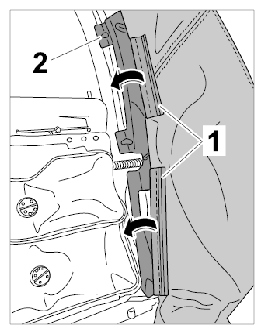

Engage cover piping -1- right and left into backrest frame -2- .

Fig 3: Engaging Cover Piping
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Press connection of backrest cover -1- sideways into the backrest frame -2- with a plastic wedge -3- .

Fig 4: Pressing Connection Of Backrest Cover
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

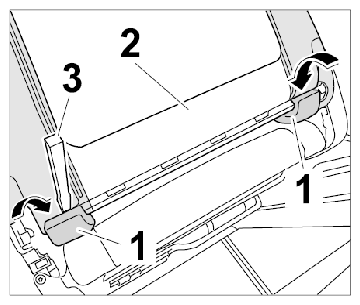

Press cover for backrest -1- into the backrest shell -2- lower left and right using a screwdriver -3- .

Fig 5: Pressing Cover For Backrest At Bottom
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
