Removing Cover For Front Backrest

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

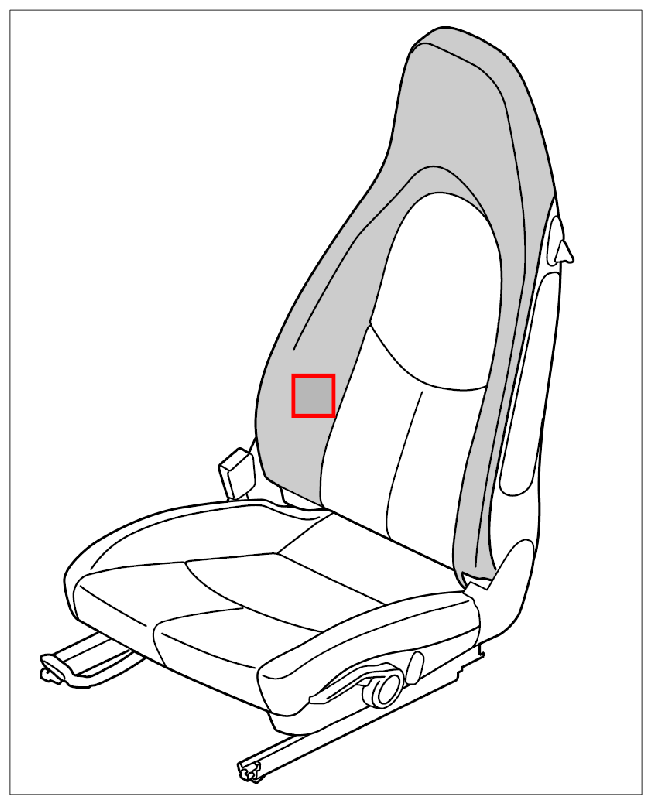

Fig 1: Identifying Cover For Front Backrest Position
G09830049Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  1. Unscrew fastening screw -2-  and remove clothes hook -1-  (-arrow-  ).

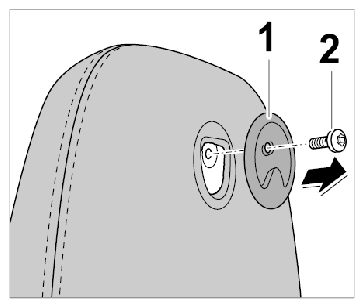

    Fig 2: Removing Coat Hook
    G09830050Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Insert a plastic wedge between the cover -1-  and collar -2-  and unclip the collar -arrow-  .

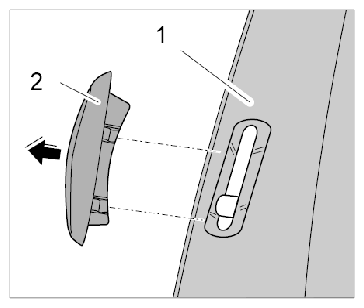

    Fig 3: Removing Collar
    G09830051Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  3. Press out the cover -1-  on the cushion carrier -2-  at the bottom left and right using a screwdriver -3-  (-arrows-  ).

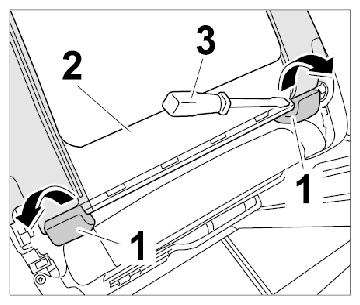

    Fig 4: Disengaging Cover At Bottom
    G09830052Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  4. Press cover piping -1-  at the left and right out of the backrest frame -2-  (-arrows-  ).

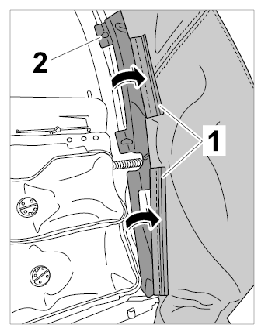

    Fig 5: Loosening Cover Piping
    G09830053Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  5. Remove side airbag. → REMOVING SIDE AIRBAG
  6. Loosen the joint in the cover -1-  out of the side airbag frame -2-  slightly using a screwdriver -3-  and pull it out with your hand all the way around -arrows-  .

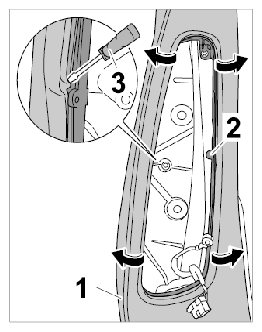

    Fig 6: Loosening Joint At Frame For Side Airbag
    G09830054Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  7. Press out the cover -1-  on the cushion carrier -2-  at the bottom left and right using a screwdriver -3-  (-arrows A-  ).

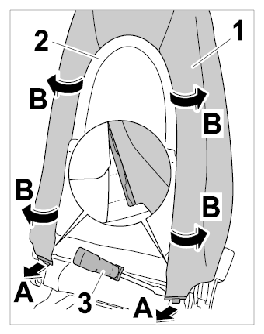

    Fig 7: Releasing Rear Cover
    G09830055Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  8. Pull the cover -1-  out of the cushion carrier -2-  at the back with your hand all the way around -arrows B-  .
  9. Fold over cover piping -1-  at the left and right side in ↓-direction of arrow-  .

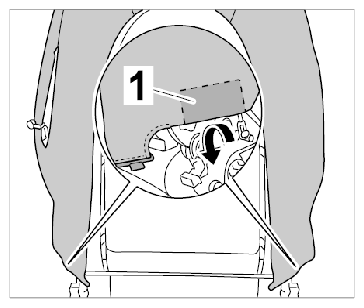

    Fig 8: Folding Cover Piping At Sides
    G09830056Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  10. Unclip plastic strip -2-  on the cover -1-  from the fixing clips -3-  .

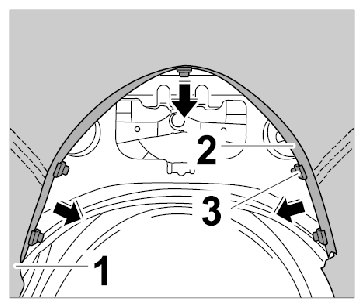

    Fig 9: Unclipping Cover
    G09830057Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  11. Remove tie-wraps -1-  on the wire harness -2-  at the left and right -arrow-  .

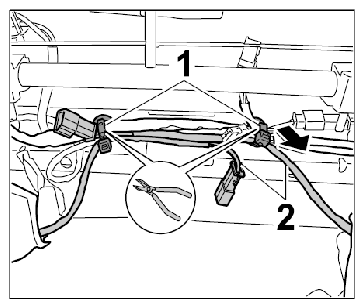

    Fig 10: Loosening Wire Harness
    G09830058Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  12. Pull cover -1-  up and out -arrows-  .

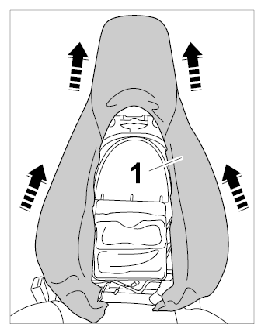

    Fig 11: Removing Cover
    G09830059Courtesy of PORSCHE CARS NORTH AMERICA, INC.
