Installing Cover For Front Backrest

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.
  1. Pull cover -1-  over and align with the contour of the padding.

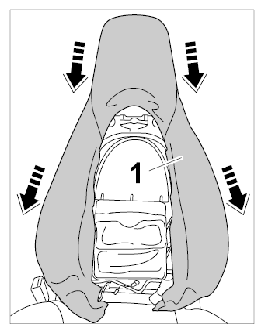

    Fig 1: Installing Cover
    G09830060Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Check fixing clips -3-  and replace them if necessary.
  3. Press plastic strip -2-  on the cover -1-  into the fixing clips -3-  (-arrows-  ).

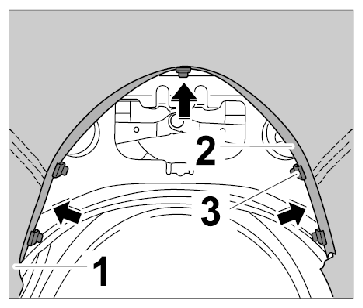

    4. Fig 2: Locating Cover For Backrest
    G09830061Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  4. Fold over cover piping -1-  at the sides in -direction of arrow-  .

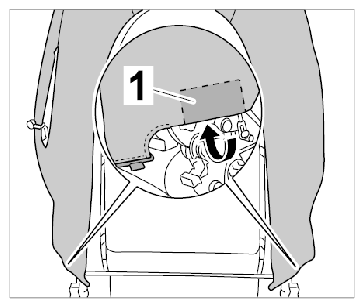

    Fig 3: Folding Cover For Backrest At Sides
    G09830062Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  5. Press joint in cover -1-  at the back into the cushion carrier -2-  (-arrows A-  ) and secure by tapping gently (with a plastic hammer).

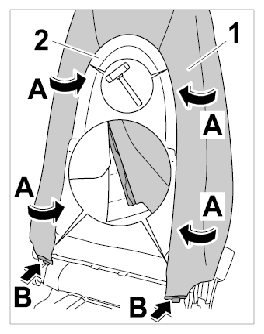

    Fig 4: Securing Cover At Back
    G09830063Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  6. Engage joint in cover -1-  at the bottom into the cushion carrier -2-  (-arrows B-  ).
  7. Press joint in cover -1-  into the side airbag frame -2-  using a plastic wedge -3-  (-arrows-  ).

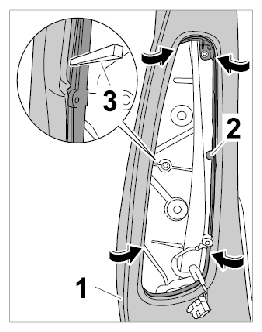

    Fig 5: Securing Joint At Frame For Side Airbag
    G09830064Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  8. Install side airbag. → INSTALLING SIDE AIRBAG
  9. Press cover piping -1-  at the left and right into the backrest frame -2-  (-arrows-  ).

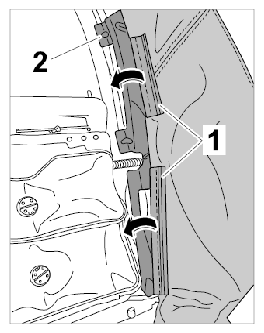

    Fig 6: Pressing Cover Piping
    G09830065Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  10. Press in cover -1-  on the cushion carrier -2-  at the bottom left and right using a plastic wedge -3-  (-arrows-  ) until it engages securely.

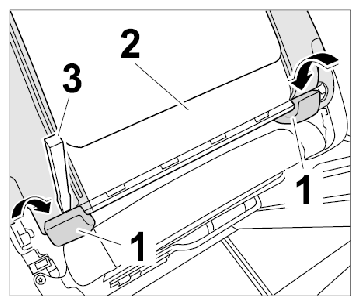

    Fig 7: Securing Cover At Bottom
    G09830066Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  11. Secure wire harness -2-  at the left and right with a tie-wrap -1-  (-arrow-  ).

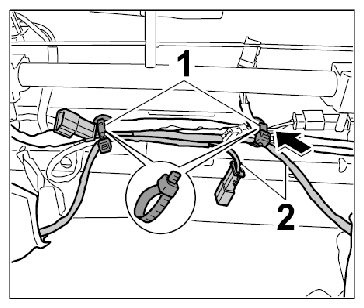

    Fig 8: Securing Wire Harness
    G09830067Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  12. Position collar -2-  on the cover -1-  (-arrow-  ) and press in until it clicks into place.

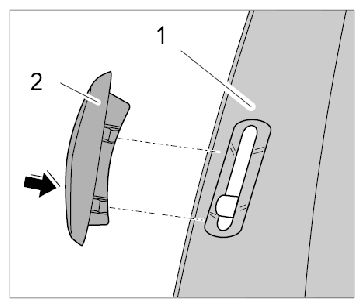

    Fig 9: Fitting Collar
    G09830068Courtesy of PORSCHE CARS NORTH AMERICA, INC.

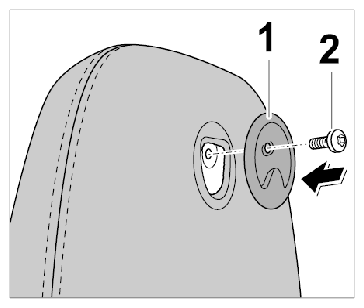

  13. Position clothes hook -1-  (-arrow-  ) and secure with the fastening screw -2-  .
    Fig 10: Installing Clothes Hook
    G09830069Courtesy of PORSCHE CARS NORTH AMERICA, INC.
