Releasing Wire Harness For Backrest Seat Heating

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

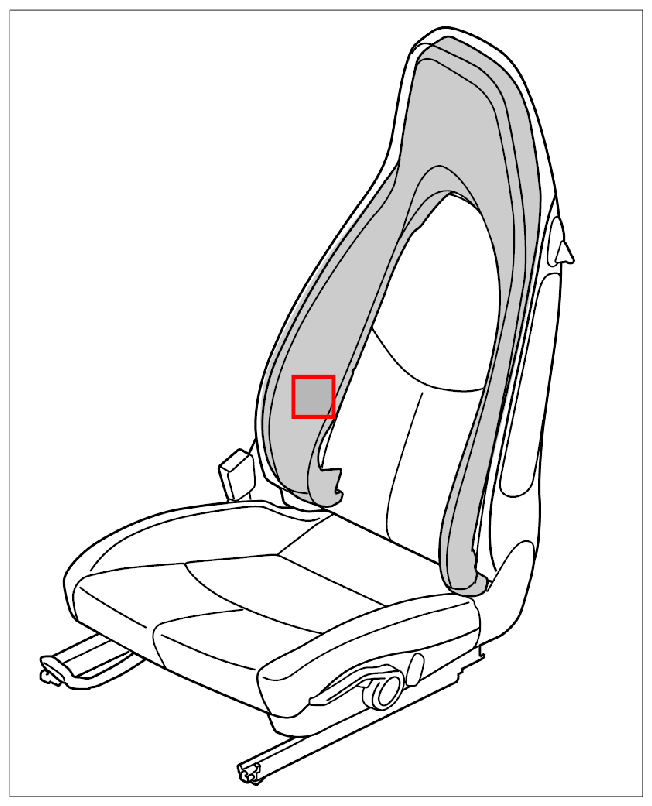

Fig 1: Identifying Padding For Front Backrest Position

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Information

Only for vehicles with heated seats.

Release wire harness on backrest frame.
1. 1.1. Unclip fixing clip -1- .
2. 1.2. Cut tie-wrap -2- .

  Fig 2: Releasing Wire Harness On Backrest Frame
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Release wire harness on seat frame.
1. 2.1. Cut tie-wrap -1- and disengage wire harness -2- (-arrow A- ).
2. 2.2. Disconnect electric plug connection -3- for backrest seat heating -arrows B- .

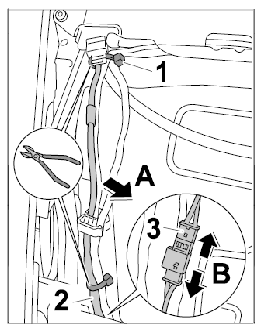

  Fig 3: Releasing Wire Harness On Seat Frame
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

  Information

  Make sure not to trap or damage the wire harness when pulling it through.
Pull wire harness out through the seat and backrest frame.

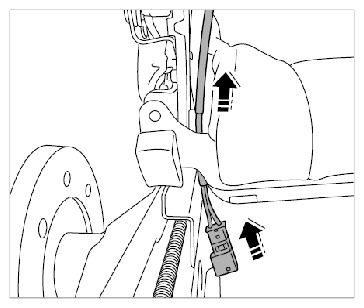

Fig 4: Pulling Out Wire Harness
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
