Securing Wire Harness For Backrest Seat Heating

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

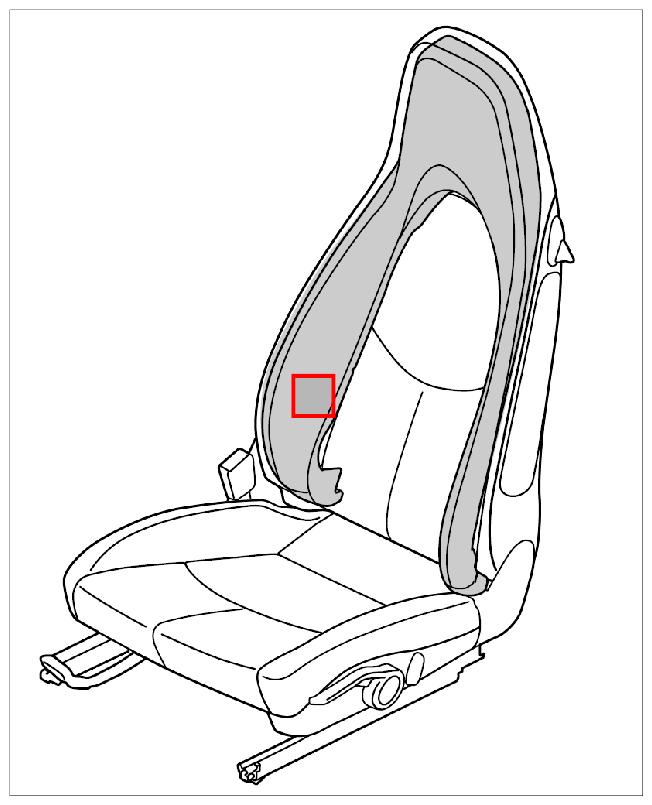

Fig 1: Identifying Wire Harness For Backrest Seat Heating Position

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Information

Make sure not to trap or damage the wire harness when pulling it through.

Information

Only for vehicles with heated seats.

Pull wire harness through the seat and backrest frame.

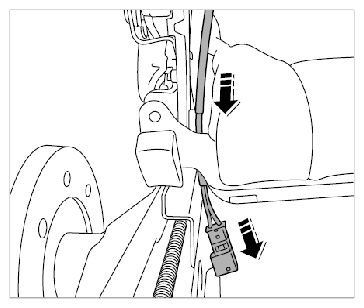

Fig 2: Pulling Wire Harness
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Secure wire harness on seat frame.
1. 2.1. Connect electric plug connection -3- for backrest seat heating -arrows A- .
2. 2.2. Engage wire harness -2- (-arrow C- ) and secure with new tie-wraps -1- .

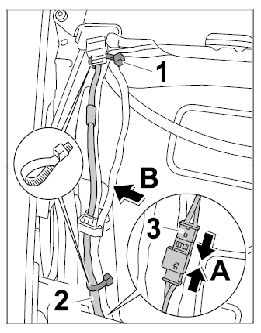

  Fig 3: Securing Wire Harness On Seat Frame
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Secure wire harness on backrest frame.
1. 3.1. Press in fixing clip -1- .
2. 3.2. Secure wire harness with new tie-wraps -2- .

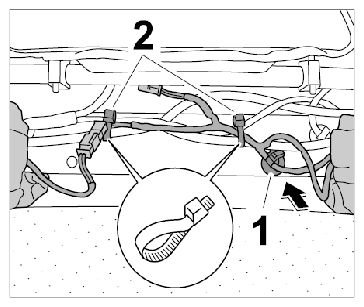

  Fig 4: Securing Wire Harness On Backrest Frame
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
