Removing Padding For Front Backrest

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Identifying Padding For Front Backrest Position

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Loosen padding -1- from the backrest frame -2- in the bonding area -3- using a Stanley knife -arrows- .

Fig 2: Removing Padding
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Remove remaining adhesive -1- and clean the contact surface of the backrest frame -2- with cleaning solution.

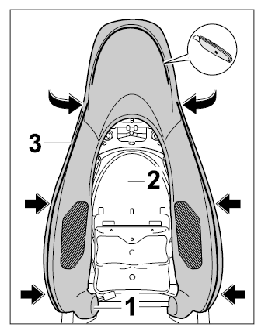

Fig 3: Identifying Adhesive And Contact Surface Of Backrest Frame
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
