Installing Padding For Front Backrest

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

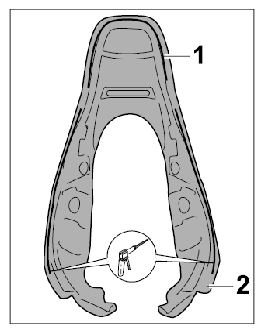

  1. Apply adhesive -1-  to the marked area of the padding -2-  .
    Fig 1: Applying Adhesive
    G09829979Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Information

    Sealing surface of backrest frame must be clean and free of grease.

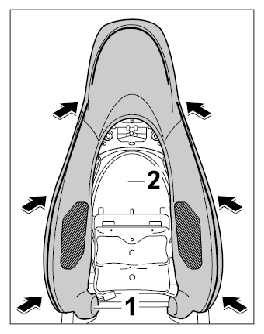

  2. Place padding -1-  on the backrest frame -2-  and straighten it -arrows-  .
    Fig 2: Installing Padding
    G09829980Courtesy of PORSCHE CARS NORTH AMERICA, INC.
