Removing Cover For Front Seat

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

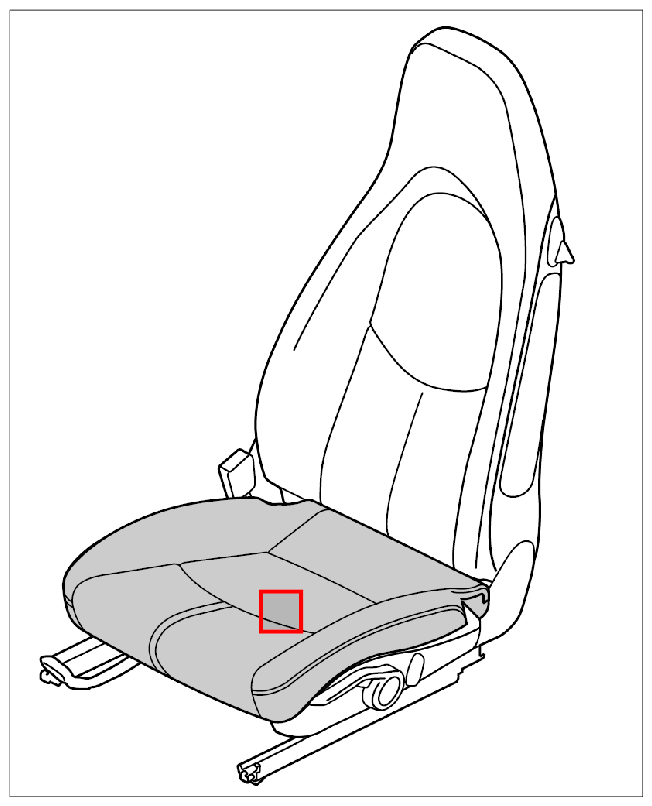

Fig 1: Identifying Front Seat Cover For Position

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

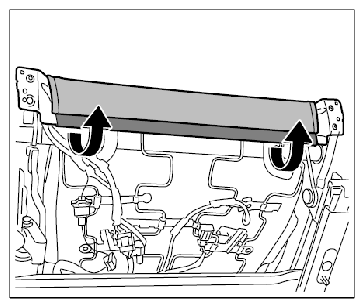

Carefully press cover piping out of the seat frame using a screwdriver -arrows- .

Fig 2: Pressing Out Cover At Rear

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

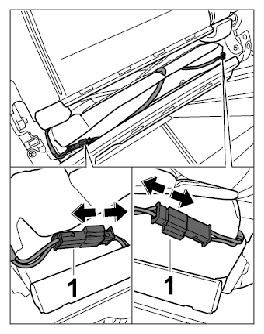

Disconnect plug connections for heated seats -1- (-arrows- ).

Fig 3: Disconnecting Plug Connections
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

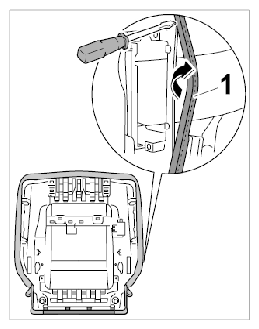

Loosen cover piping -1- slightly with a screwdriver and pull it out with your hand all the way around -arrow- .

Fig 4: Pulling Out Cover
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

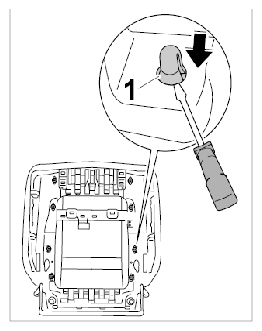

Unclip fixing clips -1- with a screwdriver -arrow- .

Fig 5: Removing Fixing Clips
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

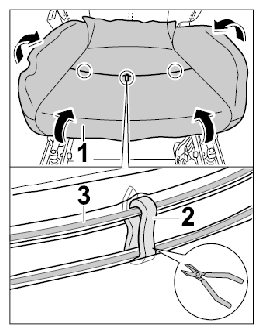

Fold cover -1- up slightly -arrows- and cut the cushion clips -2- at the front on the integrated metal strut -3- using side cutters.

Fig 6: Detaching Cover At Front
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

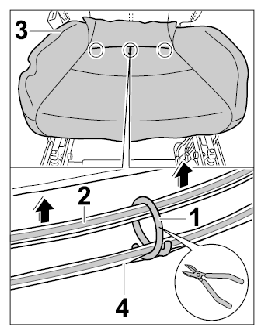

Cut cushion clips -1- at the rear on the integrated metal strut -2- using side cutters.
Remove cover -3- from the padding -4- (-arrows- ).

Fig 7: Releasing Rear Cover

Courtesy of PORSCHE CARS NORTH AMERICA, INC.
