Installing Cover For Front Seat

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

Information

Fasten cover to the padding, starting from the inside.
Do so in the following sequence: Rear (metal clips), front (plastic clips).

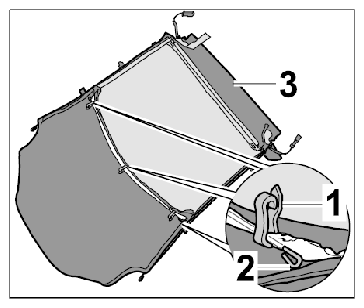

Engage cushion clips -1- in the integrated metal strut at the front -2- of the cover -3- .

Fig 1: Fitting Cushion Clips
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Place cover -3- on the padding -4- and straighten it -arrows- .

Fig 2: Securing Cover At Back
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

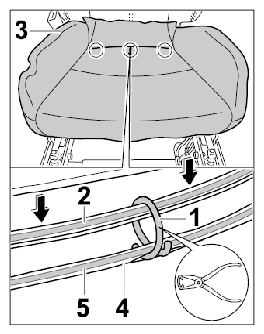

Using the cushion clip pliers Nr.130 and the cushion clips -1- at the rear, join the integrated metal struts of the padding -5- to the metal struts for the cover -2- .

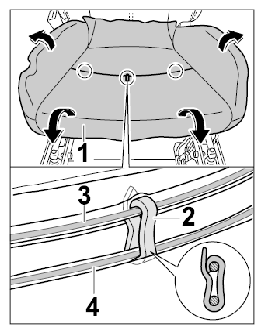

Using the cushion clips -2- at the front, join the integrated metal struts of the padding -4- to the metal struts of the cover -3- .

Fig 3: Securing Cover At Front
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Fold out cover -1- (-arrows- ).

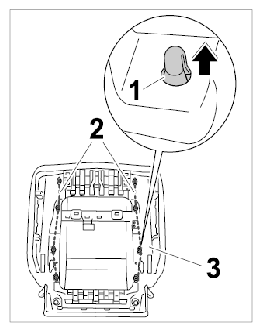

Check fixing clips -1- and replace them if necessary.
Position cover strips at the left and right -2- at the cut-outs provided on the padding and clip them into the seat frame -3- (-arrow- ).

Fig 4: Clipping In Cover Strips
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Fit cover over the padding without creases.

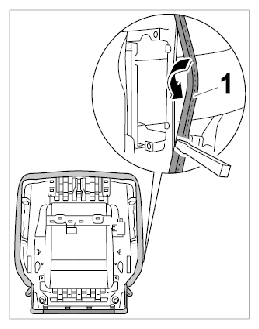

Fit cover piping -1- into the seat frame all the way around using a plastic wedge -arrow- .

Fig 5: Fitting Cover
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

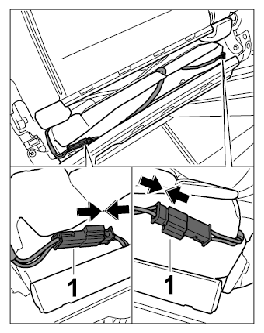

Connect plug connections for heated seats -1- (-arrows- ).

Fig 6: Connecting Plug Connections
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

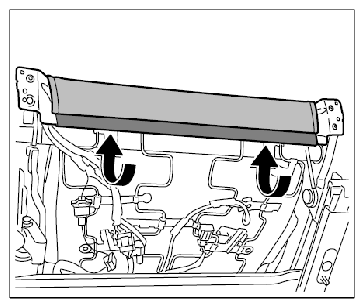

Fit cover piping at the rear on the seat frame using a plastic wedge -arrows- .

Fig 7: Fitting Cover At Rear
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
