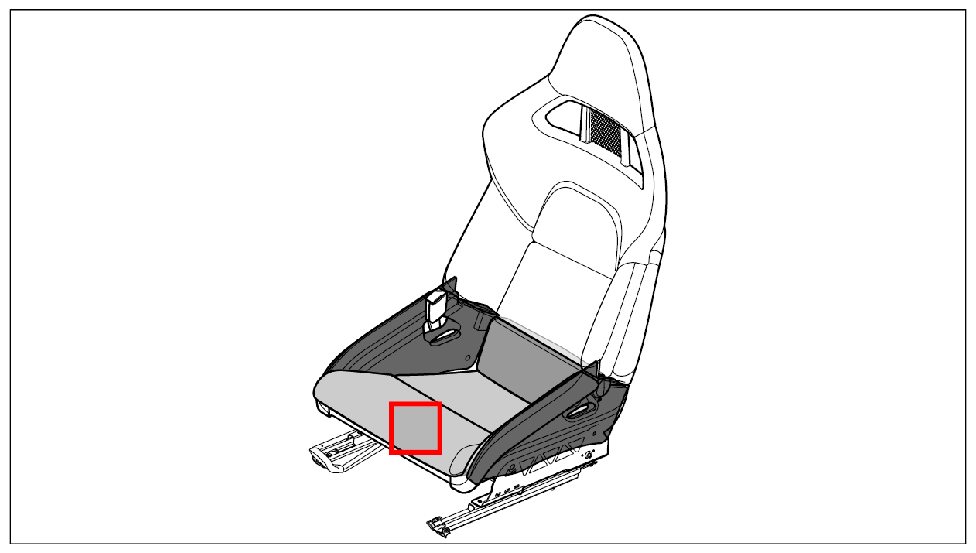

Removing Seat Cushion Padding (Front Part)
WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

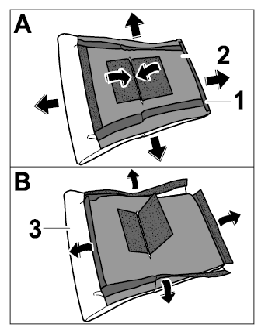

- Release Velcro fasteners -1-
on the back of the padding -2-
all the way around (Fig 2).
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

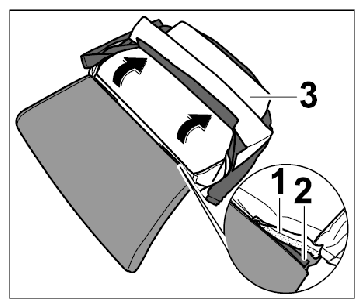

- Fold cover -3-
over all the way around (Fig 2).
- Carefully detach Velcro strip -1-
on the cover from the Velcro fastener on the front of the padding -2-
(-arrows-
).
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
- Take off the cover -3-
.
