Removing Padding For Seat

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

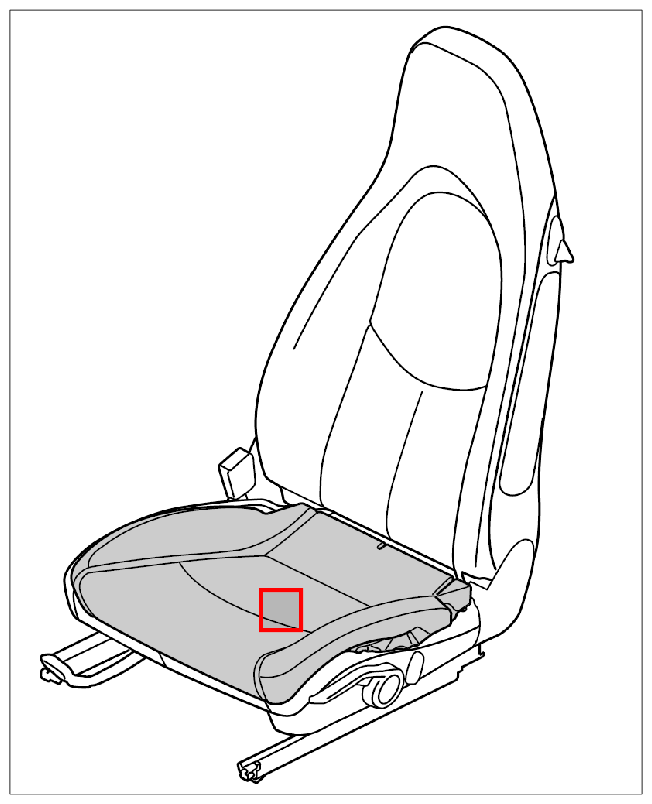

Fig 1: Identifying Padding For Seat Position
G09829843Courtesy of PORSCHE CARS NORTH AMERICA, INC.

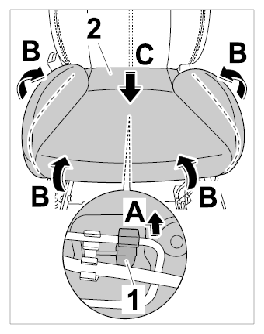

  1. Unclip fixing clip -1-  underneath the padding -2-  (-arrow A-  ).
  2. Carefully detach padding -2-  by hand from the seat frame -arrow B-  and remove it -arrow C-  .
    3. Fig 2: Removing Padding
    G09829844Courtesy of PORSCHE CARS NORTH AMERICA, INC.

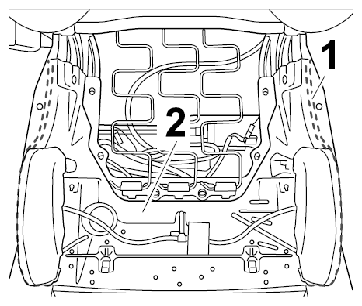

  3. Remove residual adhesive -1-  and clean sealing surface of seat frame -2-  with cleaning agent.
    Fig 3: Identifying Residual Adhesive And Sealing Surface Of Seat Frame
    G09829845Courtesy of PORSCHE CARS NORTH AMERICA, INC.
