Disconnecting Wire Harness For Heated Seats

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

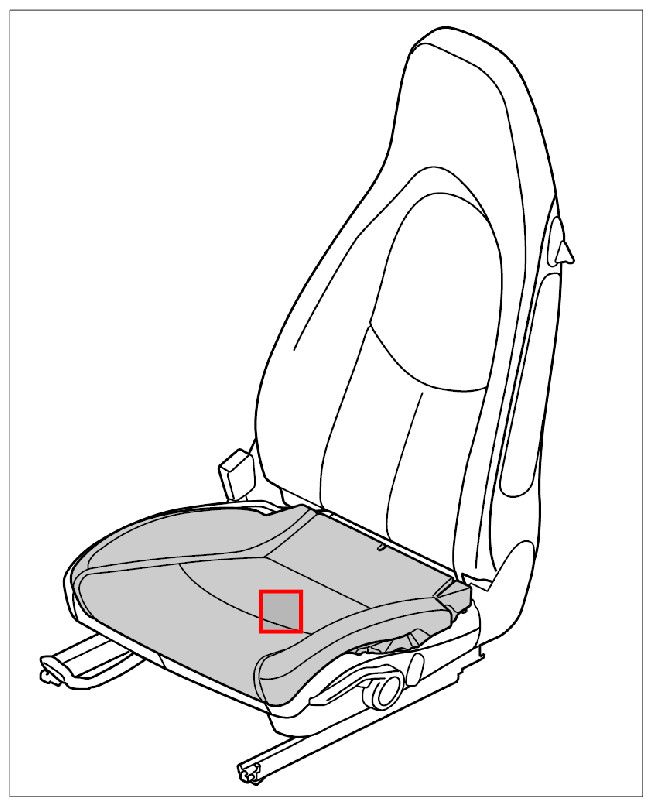

Fig 1: Identifying Padding For Seat Position

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Information

Only for vehicles with heated seats.

Cut tie-wraps -1- and disengage wire harness -2- (-arrow A- ).
Disconnect electric plug connection -3- for backrest seat heating -arrows B- .

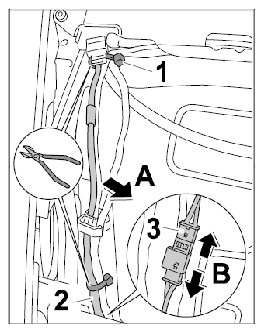

Fig 2: Releasing Wire Harness On Seat Frame

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Cut tie-wraps -1-

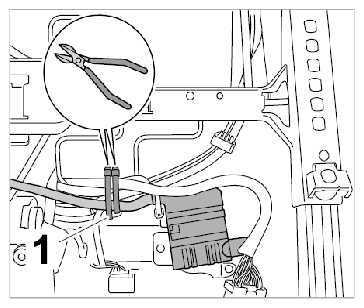

Fig 3: Cutting Tie-Wraps
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Release connector socket -arrows a- and pull out of holder.

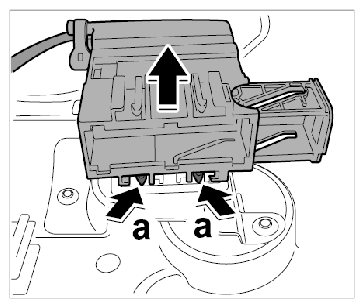

Fig 4: Pulling Off Connector Socket
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Remove tie-wraps -2- on connector socket -1- .
Release connector socket -1- (-arrows a- ) and remove the three individual connectors -3- .

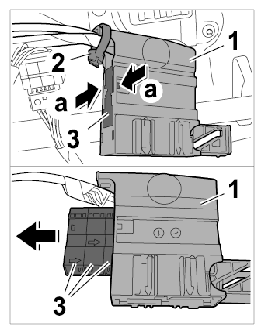

Fig 5: Removing Tie-Wraps On Connector Socket
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Information

Make sure not to trap or damage the wire harness when pulling it through.
Pull wire harness out through the seat frame.

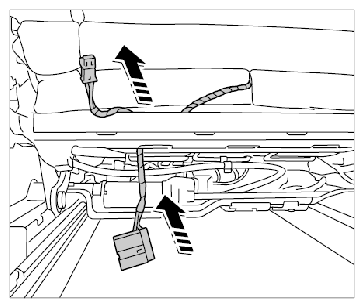

Fig 6: Pulling Out Wire Harness
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
