Securing Wire Harness For Heated Seats

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

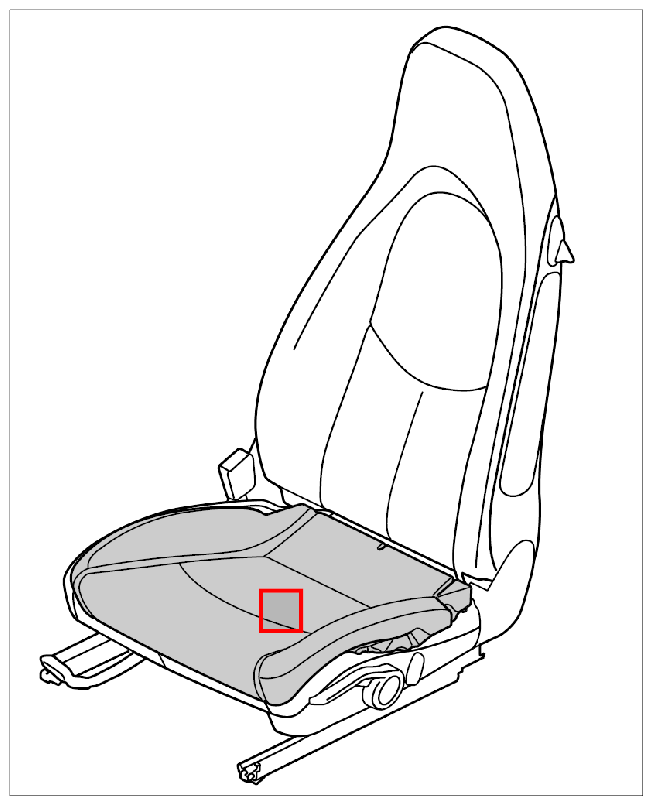

Fig 1: Identifying Padding For Seat Position

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Information

Only for vehicles with heated seats.

Information

Make sure not to trap or damage the wire harness when pulling it through.

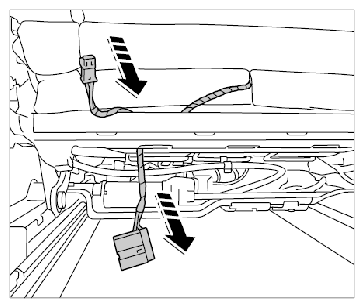

Pull wire harness through the seat frame.

Fig 2: Pulling Out Wire Harness
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

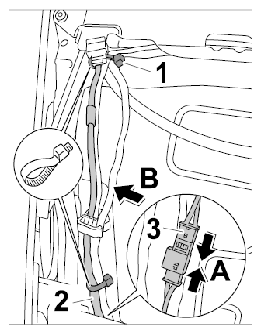

Connect electric plug connection -3- for backrest seat heating -arrows A- .
Engage wire harness -2- (-arrow B- ) and secure with new tie-wraps -1- .

Fig 3: Securing Wire Harness On Seat Frame

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

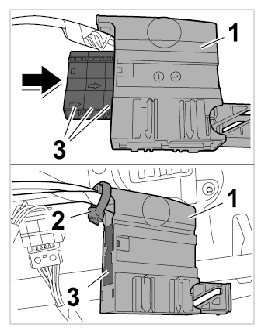

Press the three individual connectors -3- into the connector socket -1- until they engage firmly.

Fig 4: Pressing Individual Connectors
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Put new tie-wraps -2- on the connector socket -1- .

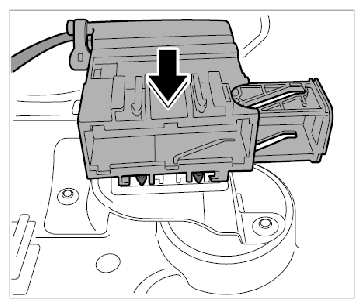

Attach connector socket to support until it clicks into place.

Fig 5: Attaching Connector Socket
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

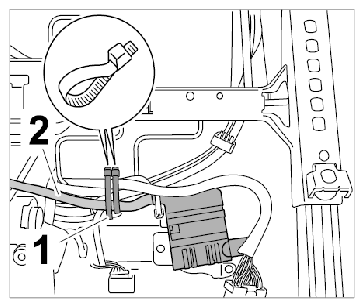

Secure wire harness -2- with new tie-wraps -1- .

Fig 6: Securing Wiring Harness
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
