Installing Padding For Seat

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

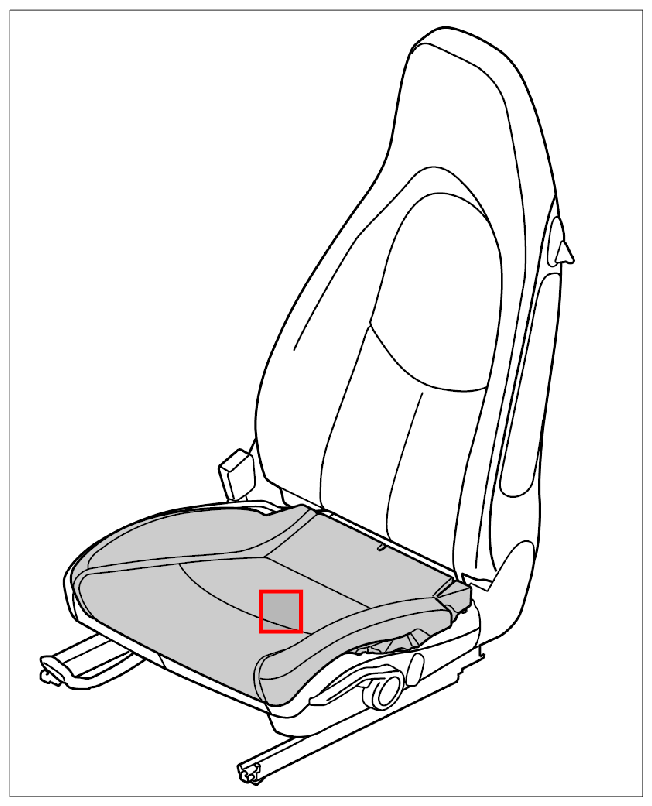

Fig 1: Identifying Padding For Seat Position
G09829846Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  1. Apply adhesive -1-  on the marked area of the padding -2-  .

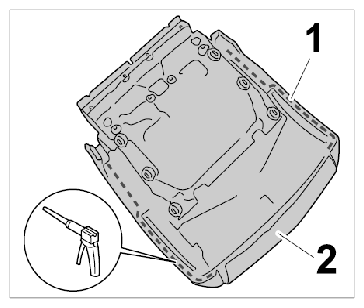

    Fig 2: Applying Adhesive
    G09829847Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Information

    Sealing surface of seat frame must be clean and free of grease.

  2. Place padding -2-  on the seat frame -arrow A-  and align it with the seat frame -arrow B-  .
  3. Clip in fixing clip -1-  underneath the padding -2-  (-arrow C-  ).

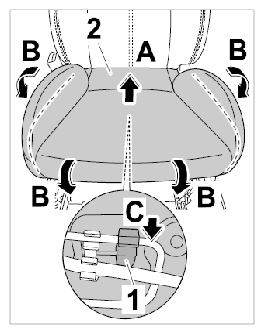

    4. Fig 3: Installing Padding
    G09829848Courtesy of PORSCHE CARS NORTH AMERICA, INC.
