Removing Suction Fan For Seat Surface (Driver's Side)

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

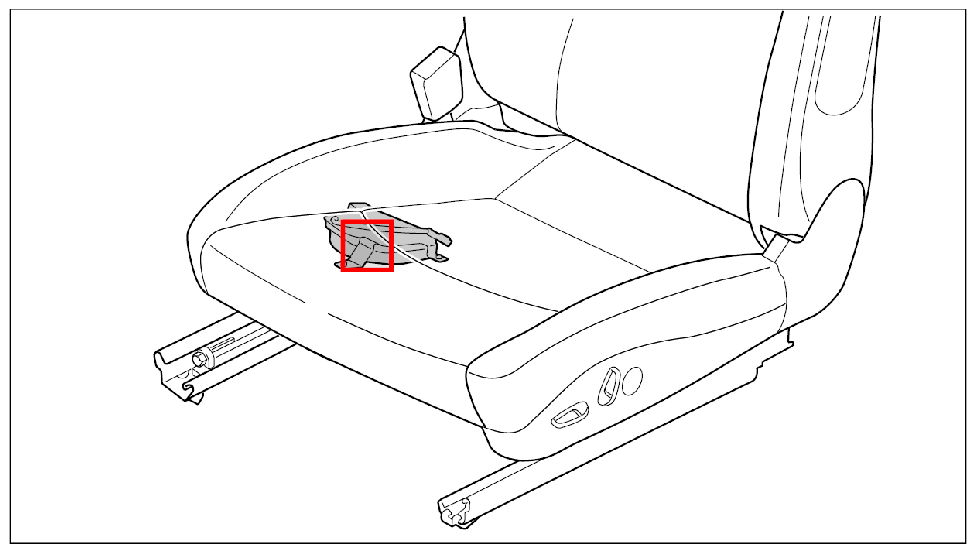

Fig 1: Identifying Suction Fan For Seat Surface Position
G09829816Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  1. Release connector socket -arrows a-  and pull it out of the holder -arrow-  .

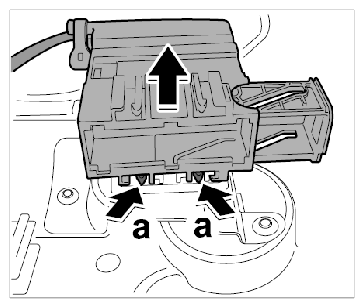

    Fig 2: Pulling Off Connector Socket
    G09829817Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Unscrew fastening screws -1 and 2-  .

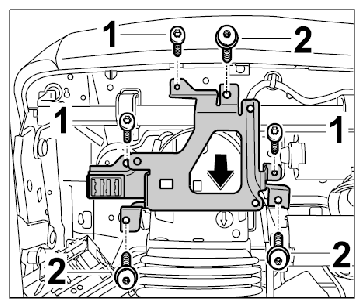

    Fig 3: Removing Fastening Screws For Suction Fan And Holder
    G09829818Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  3. Remove holder for suction fan for seat surface -arrow-  and swivel suction fan for seat surface forward until you can reach the plug connection.
  4. Release plug connection -arrow A-  and disconnect it -arrows B-  .

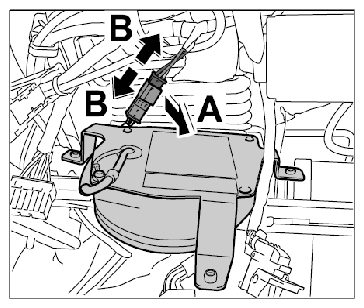

    Fig 4: Disconnecting Plug Connection On Suction Fan For Seat Surface
    G09829819Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  5. Turn suction fan for seat surface clockwise -arrow A-  until the suction fan for the seat surface is released. Counter at the air duct while doing this.
  6. Remove suction fan for seat surface -arrow B-  .

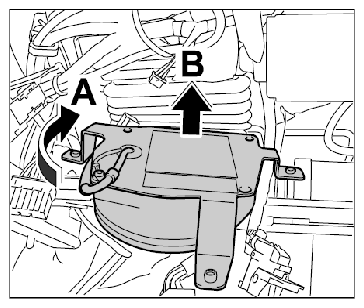

Fig 5: Removing Suction Fan For Seat Surface
G09829820Courtesy of PORSCHE CARS NORTH AMERICA, INC.
