Installing Suction Fan For Seat Surface (Passenger's Side)

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

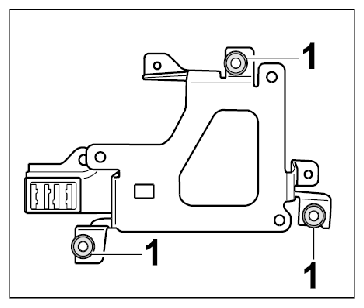

Check rubber mounting -1- on holder for suction fan for seat surface for damage and replace it if necessary.

Fig 1: Checking Rubber Mounting On Holder For Suction Fan Of Seat Ventilation
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Information

Ensure that the suction fan is installed at the correct position!

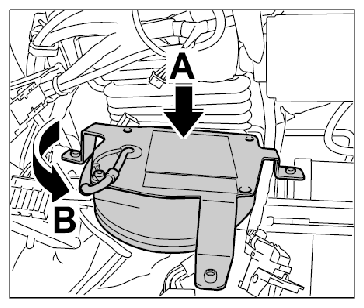

Insert suction fan for seat surface into the air duct -arrow A- , press it in and turn anti-clockwise -arrow B- until the suction fan for the seat surface is fully locked in the air duct.

Fig 2: Installing Suction Fan For Seat Surface
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

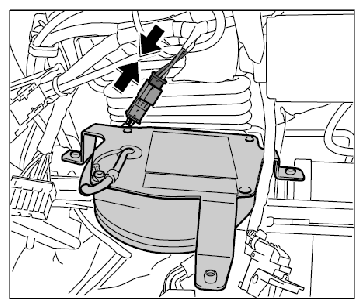

Push plug connections together until they engages securely -arrows- .

Fig 3: Connecting Plug Connection On Suction Fan For Seat Surface
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Information

Ensure that lines are routed correctly!

The wire harness must be routed between the suction fan for the seat surface and the suction fan holder arrow .

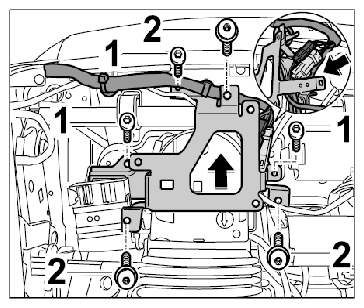

Move suction fan for seat surface together with the suction fan holder into installation position -arrow- .
Tighten fastening screws -1 and 2- .

Fig 4: Tightening Fastening Screws On Suction Fan And Holder

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

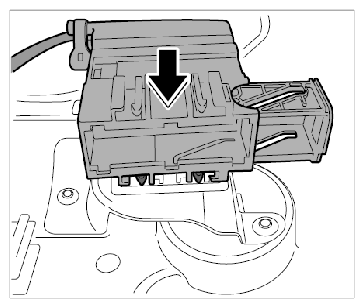

Slide connector socket onto the holder -arrow- until it clicks into place.

Fig 5: Attaching Connector Socket
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
