Removing Cigar Lighter

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

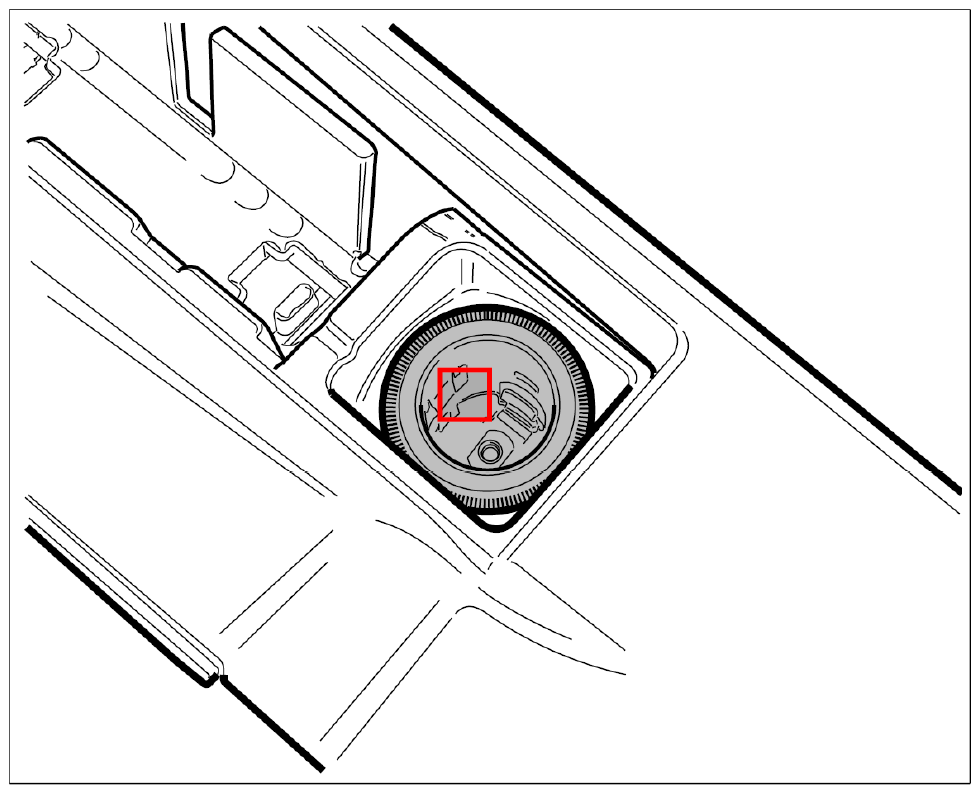

Fig 1: Identifying Cigar Lighter Position

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

The cigar lighter is located in the centre console behind the ashtray.

Disconnect the electrical plugs.
Press together the locks -A- and push out the cigar lighter out of the center console.

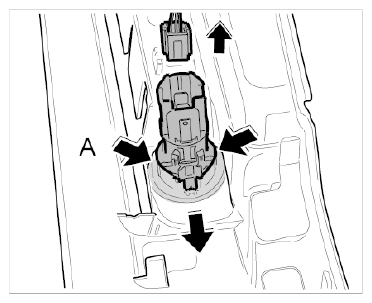

Fig 2: Removing Cigar Lighter Out Of Center Console
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
