Removing Horn

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

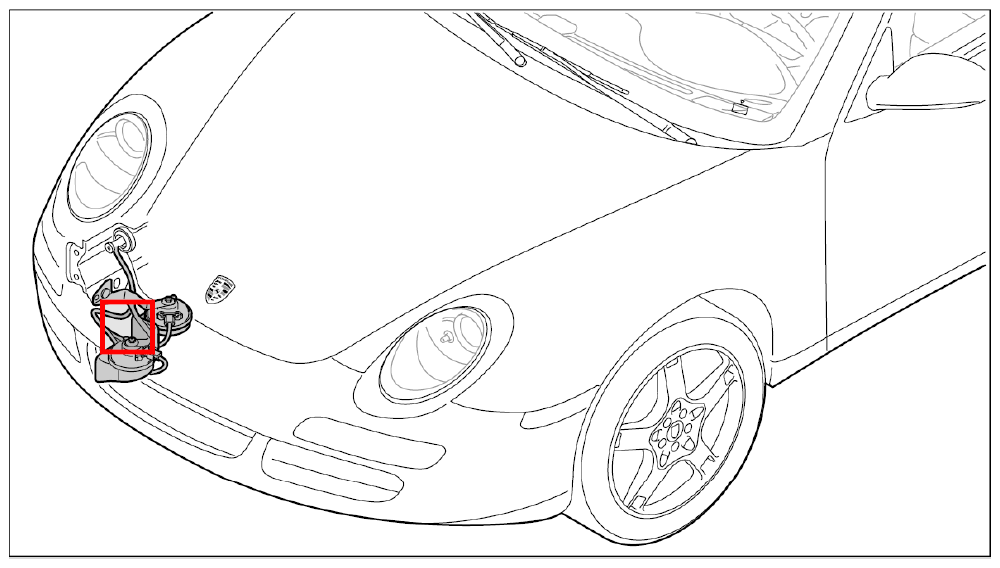

Fig 1: Identifying Horn Installation Position

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

The horn must be removed with the holder.

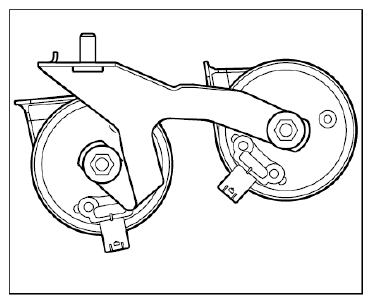

Fig 2: Identifying Horn With Holder
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Unscrew the fastening nut -2- and remove the holder with the horns.

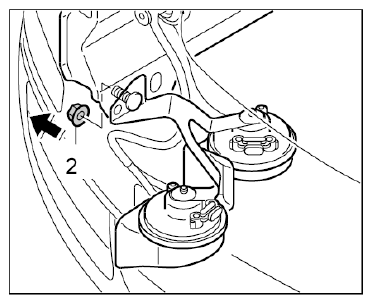

Fig 3: Removing Holder Fastening Nut
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Unlock the electrical plug -a- and disconnect from the horns.

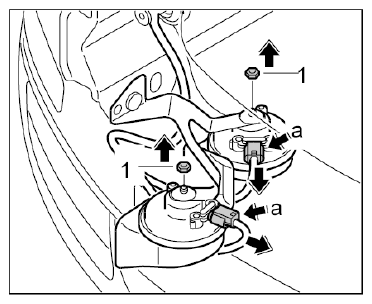

Fig 4: Removing Horn Electric Plug Connection
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Unscrew the fastening nut -1- and remove the horn from the holder.
