Installing Horn

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

Push in the horn in the holder and position the horn in the same way as the figure.

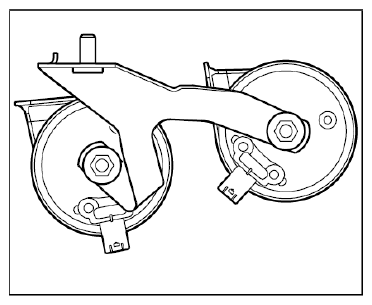

Fig 1: Identifying Horn With Holder
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Screw down the horns with the fastening nuts -1- . → M6: 7.5 ftlb.

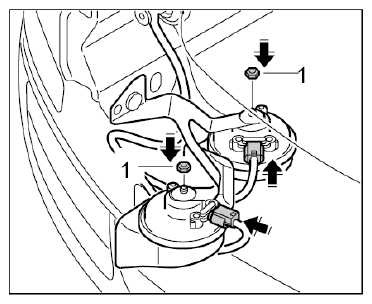

Fig 2: Installing Horn Electric Plug Connection
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Insert both electrical connectors until they perceptibly engage.
Position the holder with the horns on the body and screw down with the fastening nuts -2- . → M8: 17 ftlb.

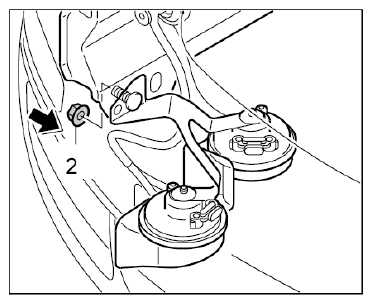

Fig 3: Installing Holder Fastening Nut
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
