Removing Stopwatch

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

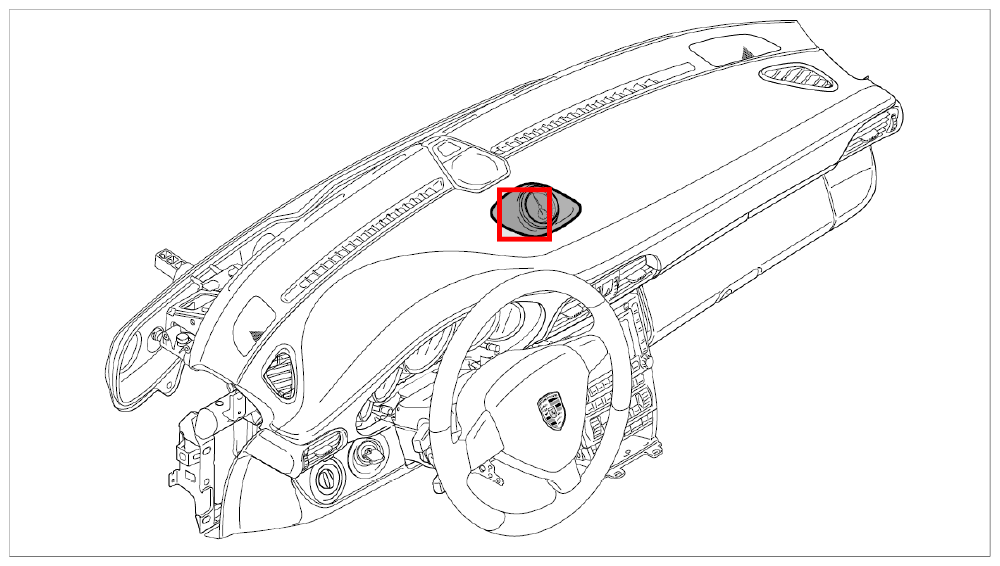

Fig 1: Identifying Stopwatch Installation Position

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Insert a plastic spatula between the dashboard and the stopwatch. Lift up the stopwatch until its four clips unclip from the dashboard.

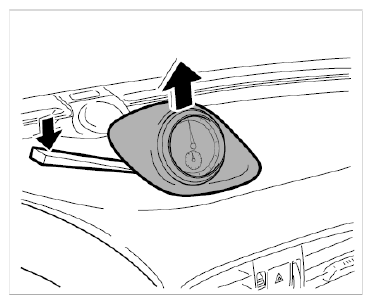

Fig 2: Removing Stopwatch From Dashboard
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Release electrical connector -a- and pull away from the stopwatch.

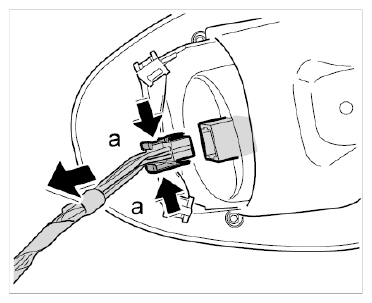

Fig 3: Removing Electrical Plug Connector
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Turn the stopwatch around, unscrew the four fastening screws, remove the cover and take the stopwatch out of its holder.

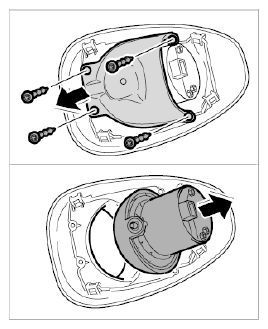

Fig 4: Removing Stopwatch Cover Fastening Screws
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
