Installing Stopwatch

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

Insert the stopwatch into the holder and attach it.

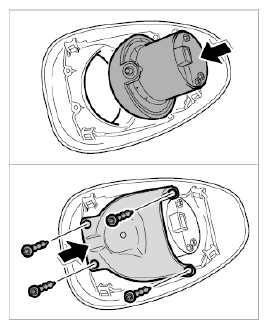

Fig 1: Installing Stopwatch Cover Fastening Screws
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Position the cover and screw down with the fastening screws.
Insert electrical connector into stopwatch until it is felt to engage.

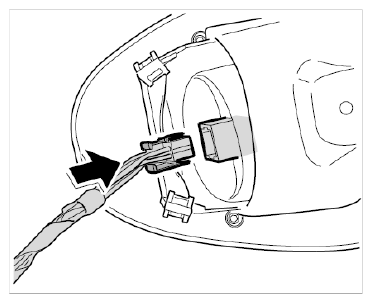

Fig 2: Installing Electrical Plug Connector
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Run electrical lead into the dashboard, position the stopwatch with its cover over the dashboard and clip in the four clips.

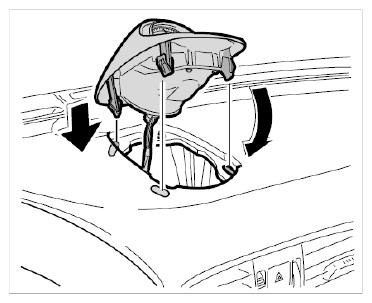

Fig 3: Installing Stopwatch On Dashboard
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
