Removing Seal For Sliding Roof

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.
  1. Press seal for sunroof down all the way round and detach it from the outer roof panel.

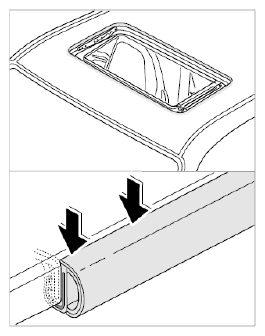

    Fig 1: Removing Seal For Sliding Roof
    G09824664Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Remove seal for sliding roof.
