Removing Cover For Sliding Roof

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

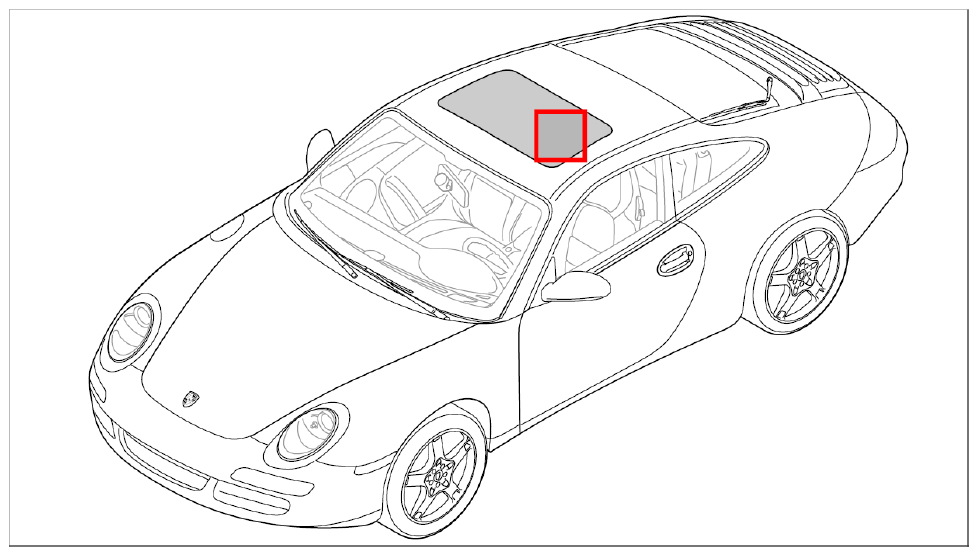

Fig 1: Identifying Sunroof Position

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

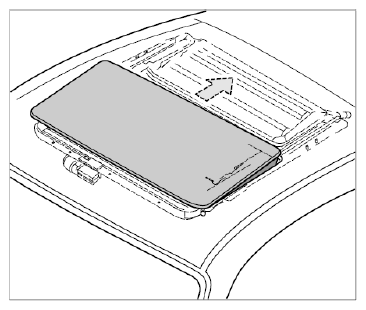

Open sliding-roof panel approx. 80 mm.

Fig 2: Opening Sliding-Roof Panel
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Information

The slide/tilt sunroof trim must be moved without the use of force.

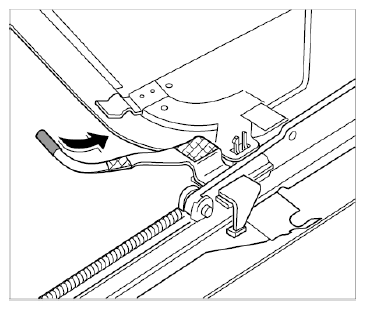

Disengage (press) slide/tilt sunroof trim out of the left and right-hand front catches towards the rear and out of the drivers, and push back by approx. 30 mm.

Fig 3: Disengaging Slide/Tilt Sunroof Trim
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

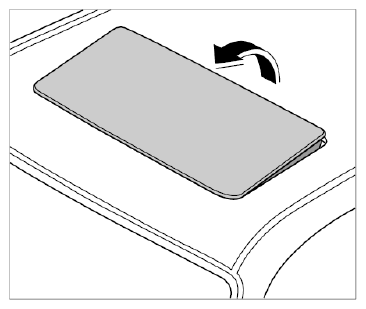

Close sliding-roof panel and move to tilting position.

Fig 4: Moving Sliding-Roof Panel To Tilting Position
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Information

The slide/tilt sunroof trim must be moved without the use of force.

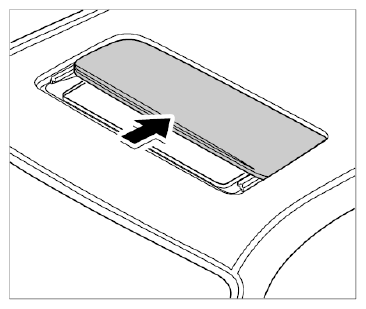

Push slide/tilt sunroof trim back evenly on the left and right as far as it will go.

Fig 5: Pushing Slide/Tilt Sunroof Trim
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

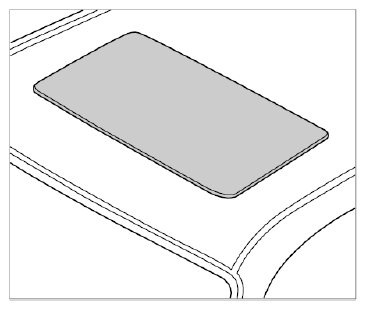

Move sliding-roof panel to zero position (closed).

Fig 6: Identifying Sliding-Roof Panel To Zero Position
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
NOTE:
Incorrect handling of sliding/tilting roof
- Risk of damage to rear water drainage channel
- Risk of damage to sliding roof mechanism
Information

→ Do not move the sliding-roof frame to the "Open" position when the sliding-roof panels have been removed.

→ The trim panel on the sliding/tilting roof must be shifted without the use of force.

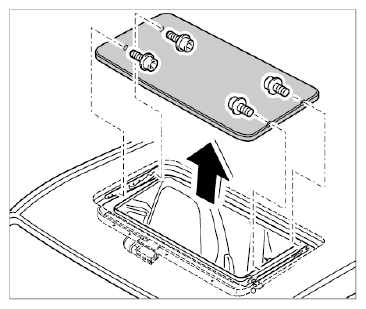

Unscrew fastening screws and lift sliding-roof panel up and off.

Fig 7: Removing Sliding-Roof Panel
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
