Removing Air Deflector

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

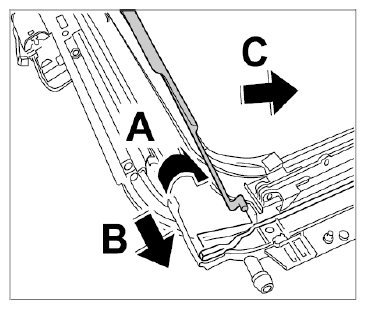

Fig 1: Identifying Air Deflector Position

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Fold air deflector upwards -arrow A- and pull it out of the guides at the left and right sides -arrow B- . Press air deflector inwards and pull it out -arrow C- .

Fig 2: Removing Air Deflector
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
