Preparing The Rear Window (Hardtop) For Removal

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

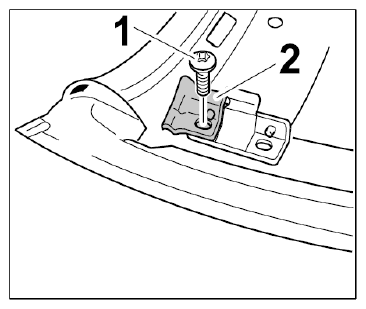

Unscrew fastening screw -1- from the centering journal -2- on the left and right and take off support -2- .

Fig 1: Removing Centering Journal Support
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

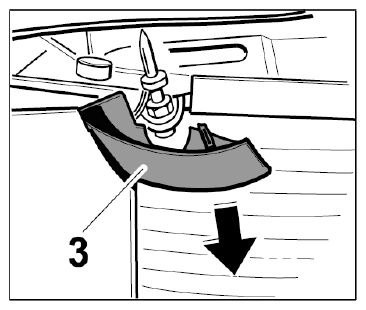

Unclip hardtop locking element trim panel -3- on the left and right.

Fig 2: Removing Centering Journal Trim Panel
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

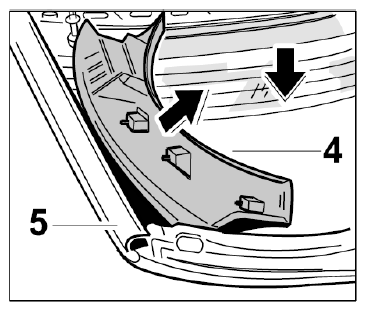

Unclip lining -4- at the sides and at the rear from the hardtop body -5- .

Fig 3: Unclipping Linings
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

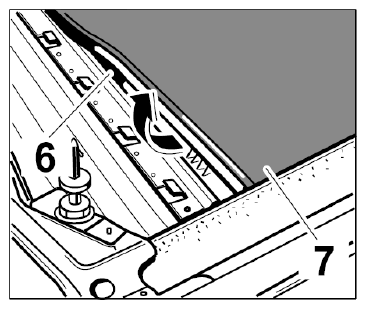

Pull plastic rail -6- on roof liner -7- to the rear and disengage.

Fig 4: Detaching Roof Liner
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Information
- To avoid damaging the electric line when cutting out the rear window, affix this to the rear window with adhesive tape.

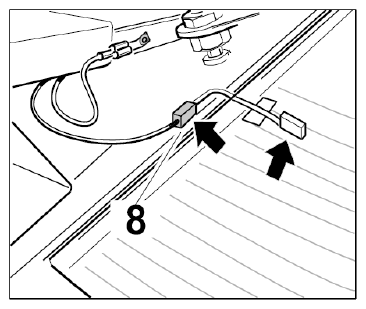

Disconnect electrical plug connection -8- at left and right of rear window.

Fig 5: Disconnecting Plug Connection For Rear Window
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Place hardtop on the assembly fixture and lock with the latching levers and the locking lever at front.

Fig 6: Locking Hardtop To Assembly Fixture
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Information
- If the cover section is removed undamaged, it can be re-used.

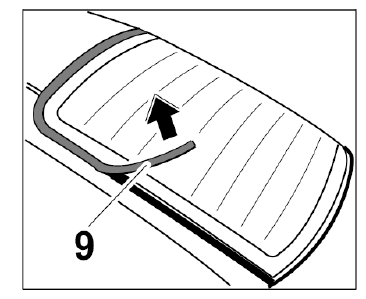

Loosen and pull off the cover section -9- .

Fig 7: Pulling Off Cover Section
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
