Inserting Rear Window Into The Hardtop Body

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: Danger of material damage if specified curing time of adhesive is not observed!

There will not be a proper adhesive bond if the prescribed curing time of the adhesive is not observed!

→ The vehicle must not be used until the curing time has elapsed.

→ Curing time: 3 hours

→ Temperature: at least 10°C

→ Fixing time: approx. 1 hour

Affix suction cups -B- to the rear window.
Information
- Two persons are needed to insert and adjust the rear window.
Insert the rear window at the top of the window aperture and lay it down carefully into the aperture.

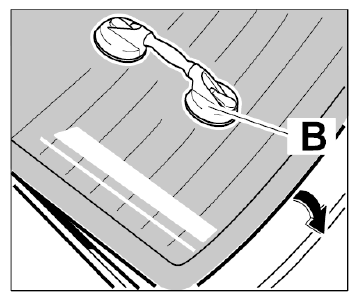

Fig 1: Inserting Rear Window
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Press the rear window fully upwards, pressing on the lower edge of the glass while doing so. Use adhesive tape to prevent the rear window from slipping at the side and the top.

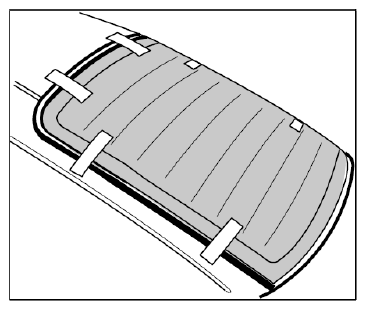

Fig 2: Securing Rear Window
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
