Completing The Rear Window (Hardtop) After Installation

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

Place outer side of the hardtop on the assembly fixture.

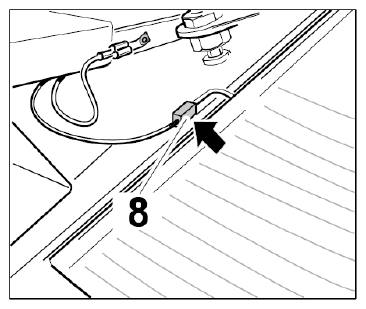

Connect electrical plug connection -8- at left and right of rear window.

Fig 1: Joining Plug Connection For Rear Window Heating
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

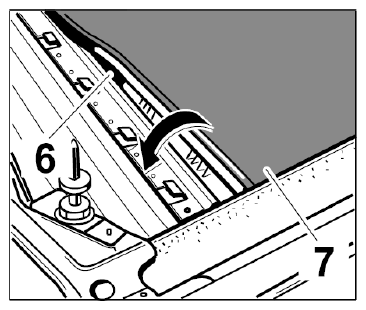

Engage roof liner -7- to the rear using plastic rail -6- .

Fig 2: Attaching Roof Liner
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

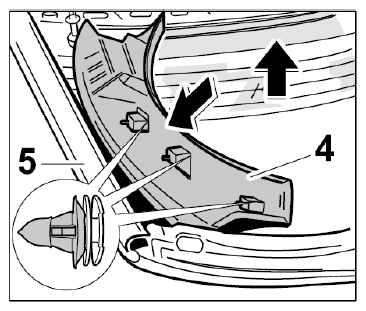

Clip in lining -4- at the sides and at the rear on the hardtop body -5- .

Fig 3: Clipping In Linings
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

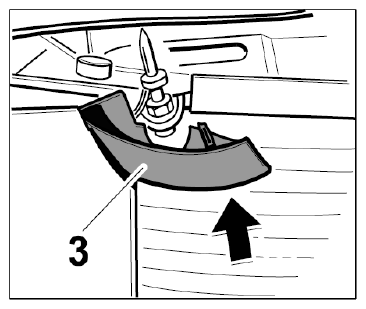

Clip hardtop locking element trim panel -3- on the left and right.

Fig 4: Clipping In Hardtop Locking Trim Panel
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

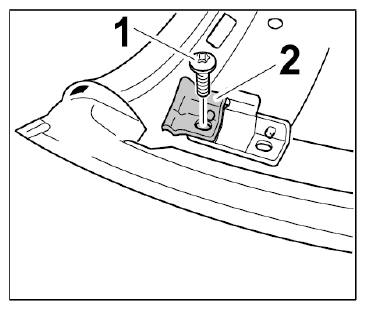

Insert centering journal -2- on the left and right, screw in the fastening screw -1- und using torque → Tightening torque: 7.5 ftlb. .

Fig 5: Installing Centering Journal Support
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
