Removing Seal For Roof Frame

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

Information

During drilling, get a second person to clean up the rivets and rivet swarf in the interior of the side panel using a vacuum cleaner.

  1. Drill out rivets -2-  from the integrated sheetmetal strip of the seal for the roof frame -1-  using a 4.1 mm drill bit.

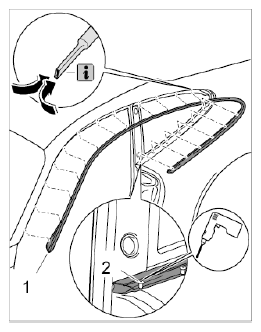

    Fig 1: Removing Seal For Roof Frame
    G09826668Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Remove seal for roof frame -1-  .

  2. Clean out the complete interior of the side section with a vacuum cleaner.
    Fig 2: Vacuuming Out Interior Of Side Section
    G09826669Courtesy of PORSCHE CARS NORTH AMERICA, INC.
