Loosening Sound Absorber

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

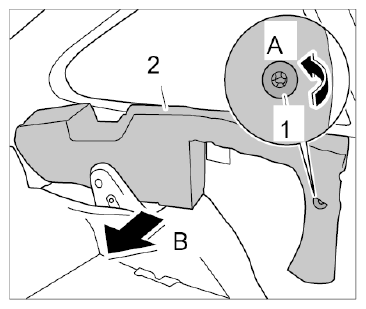

  1. Unscrew fixing clip -1-  (-Arrow A-  ) and remove sound absorber -2-  (-Arrow B-  ).
    Fig 1: Removing Sound Absorber
    G09826665Courtesy of PORSCHE CARS NORTH AMERICA, INC.

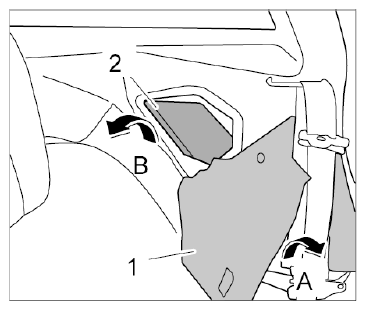

  2. Carefully loosen the sound absorber -1-  and fold it down -Arrow A-  .
    Fig 2: Removing Sound Absorber
    G09826666Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  3. Remove sound absorber -2-  from the side panel -Arrow B-  .

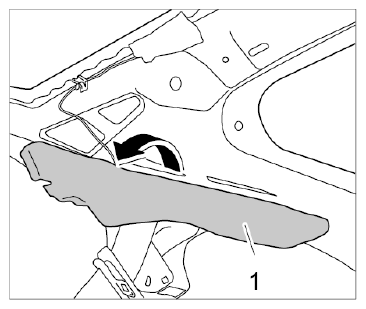

  4. Carefully loosen seal for side panel -1-  and fold it down.
    Fig 3: Loosening Seal
    G09826667Courtesy of PORSCHE CARS NORTH AMERICA, INC.
