Securing Sound Absorber

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.
  1. Check side panel seal -1-  for damage and replace it if necessary. Stick side panel seal on using commercially available adhesive.

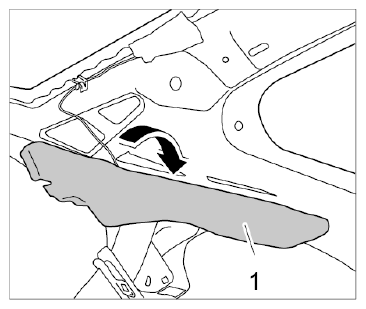

    Fig 1: Sticking In Seal
    G09826671Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Fit sound absorber -2-  into the side panel -Arrow A-  .
  3. Check sound absorber -1-  for damage and replace it if necessary. Stick sound absorber on using commercially available adhesive -Arrow B-  .

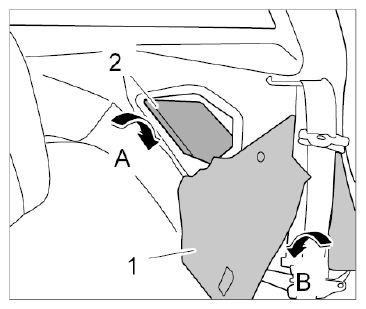

    4. Fig 2: Installing Sound Absorber
    G09826672Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  4. Position sound absorber -2-  on the side panel -Arrow A-  and screw in fixing clip -1-  (-Arrow B-  ).

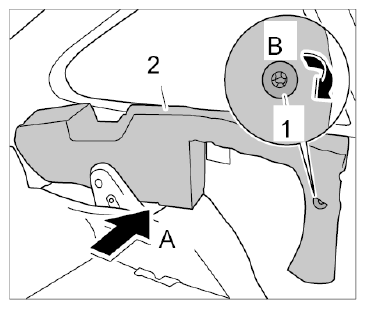

    Fig 3: Installing Sound Absorber
    G09826673Courtesy of PORSCHE CARS NORTH AMERICA, INC.
