Installing Seal For Roof Frame

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position seal for roof frame -1-  on the centering hole and rivet down with the rivet -2-  . Rivet roof area using rivets -2-  (4.0 x 7.9).
  2. Rivet down seal for roof frame -1-  in side section area using rivets -3-  (4.0 x 6.3).

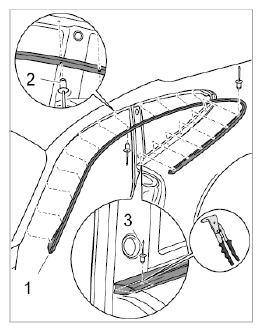

    3. Fig 1: Installing Seal For Roof Frame
    G09826670Courtesy of PORSCHE CARS NORTH AMERICA, INC.
