Loosening Hydraulic Cylinder

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

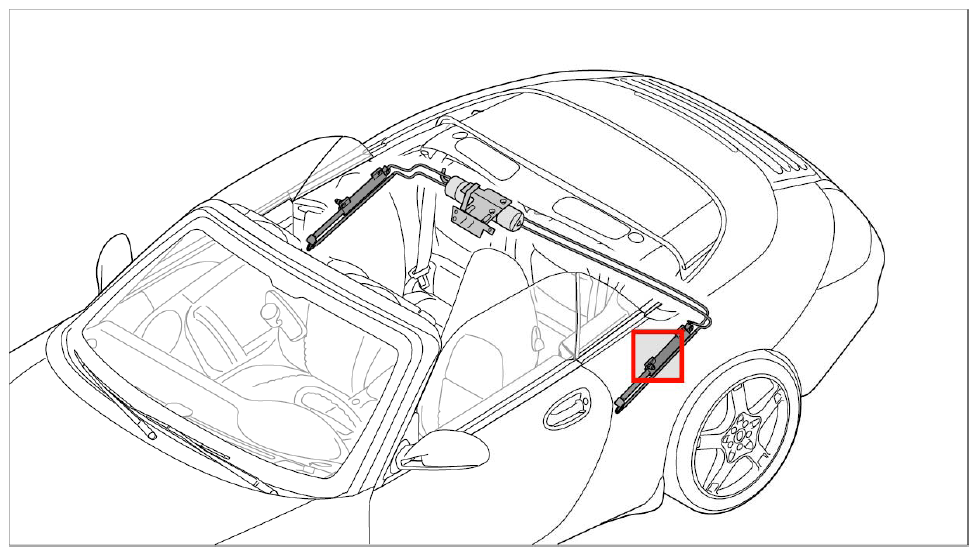

Fig 1: Identifying Position For Hydraulic Cylinder

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

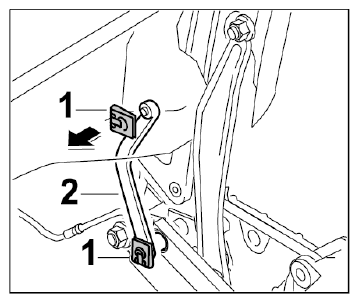

Press out the two retaining clips -1- from the drive lever -2- using assembly tool for Springfix System pin circlips Nr.131 and remove drive lever.

Fig 2: Removing Lever
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

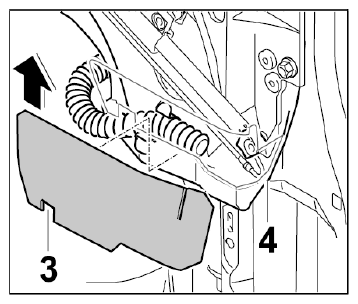

Pull the splash guard -3- upwards out of the chamber in the water drip pan -4- .

Fig 3: Removing Protection Plate
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
NOTE:
Incorrect line routing
- Risk of damage to lines and hoses
- Malfunction and fault memory entry on control unit
→ Avoid small bending radii when routing lines.

→ File down edges and burrs in the routing area or mask them with adhesive tape.

→ Maintain a sufficient distance from components exposed to high temperatures while driving.

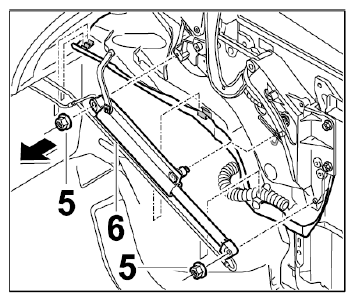

Unscrew fastening nut -5- and lay hydraulic cylinder -6- with drive lever to one side.
