Removing Rear Power Window Motor

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

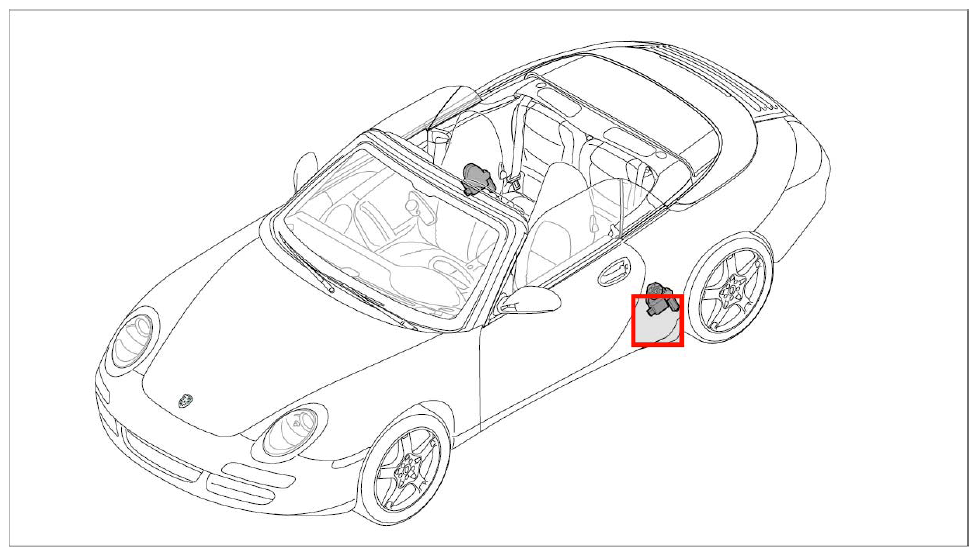

Fig 1: Identifying Location For Rear Power Window Motor
G09826613Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  1. Unscrew the three fastening screws -1-  on the rear power window motor -2-  .

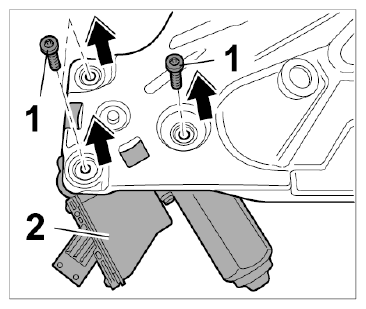

    Fig 2: Removing Fastening Screws
    G09826614Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Pull rear power window motor -1-  out of the teeth -2-  .

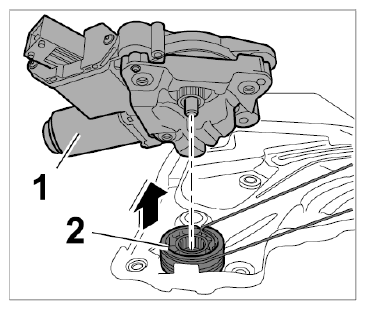

    Fig 3: Removing Rear Power Window Motor
    G09826615Courtesy of PORSCHE CARS NORTH AMERICA, INC.
