Installing Rear Power Window Motor

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

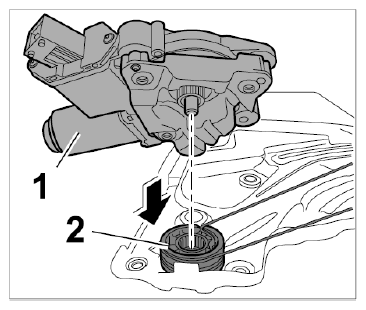

Position rear power window motor -1- and insert it into the teeth -2- .

Fig 1: Installing Rear Power Window Motor
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

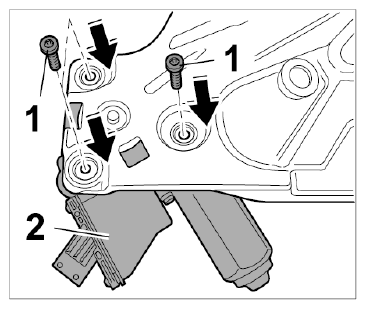

Fasten the rear power window motor -2- with the three fastening screws -1- . → Tightening torque: 3 Nm (2.0 ftlb.)

Fig 2: Tightening Fastening Screws
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
