Removing Switch For Power Windows

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

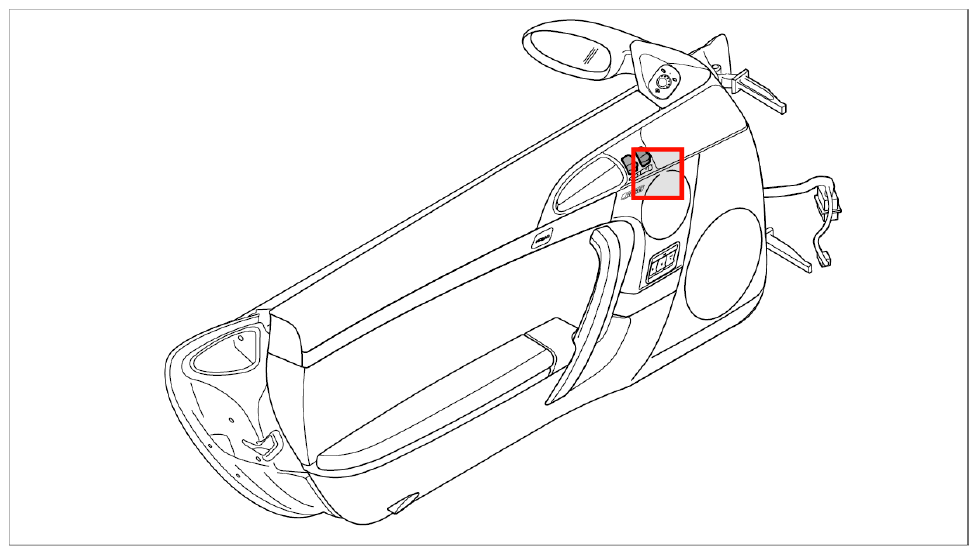

Fig 1: Overview Of Switch For Power Windows

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

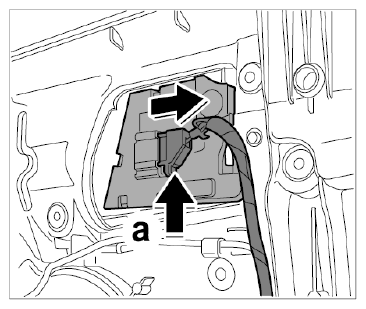

Release -arrow a- and pull off connector.

Fig 2: Pulling Connector Off Switch For Power Windows
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

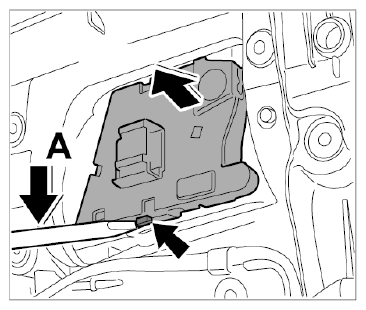

Lever off switch for power windows at the locking tab -arrow- (-arrow A- ) and remove it.

Fig 3: Removing Switch For Power Windows
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
