Installing Switch For Power Windows

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

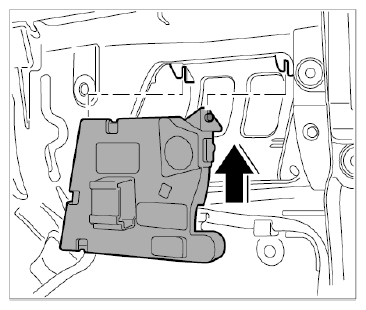

Insert the switch for power windows into the mounting points at the door trim panel using the locking tabs.

Fig 1: Installing Switch For Power Windows
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

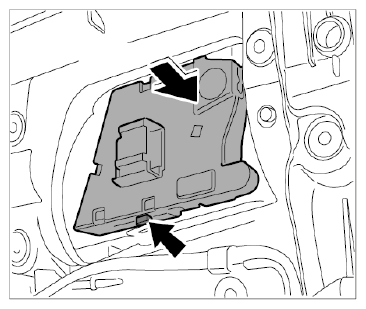

Press in switch for electric power windows until the locking tab -arrow- clicks into place.

Fig 2: Installing Switch For Power Windows
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

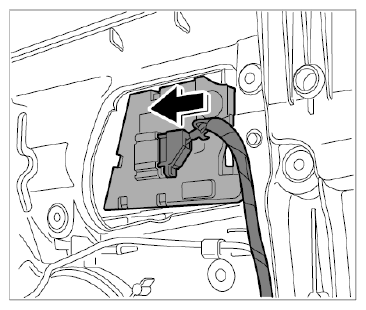

Press in the connector until it is felt to engage.

Fig 3: Connecting Connector For Switch For Power Windows
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
