Removing The Front Window Shaft Seal

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

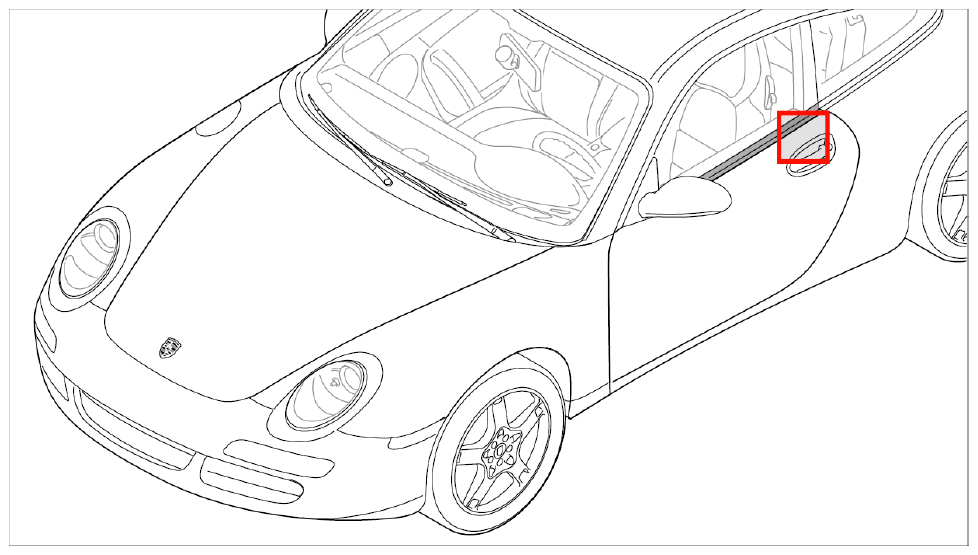

Fig 1: Identifying Position Of Front Window Shaft Seal

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Open the front door window -1- fully.

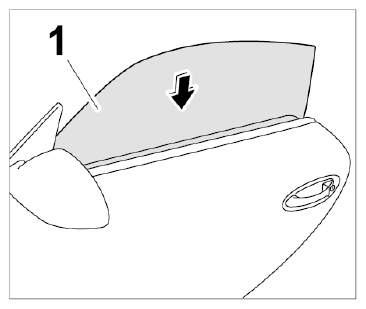

Fig 2: Opening Front Door Window
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Pull front window shaft seal -1- - beginning at the rear end -arrow A- - off the sheetmetal door flange -2- in an upward direction -arrow B- .

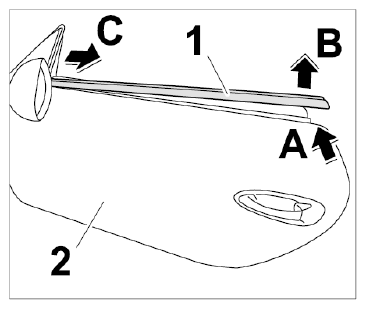

Fig 3: Removing Front Window Shaft Seal
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Remove the front window shaft seal -1- .
