Securing Front Door Window

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

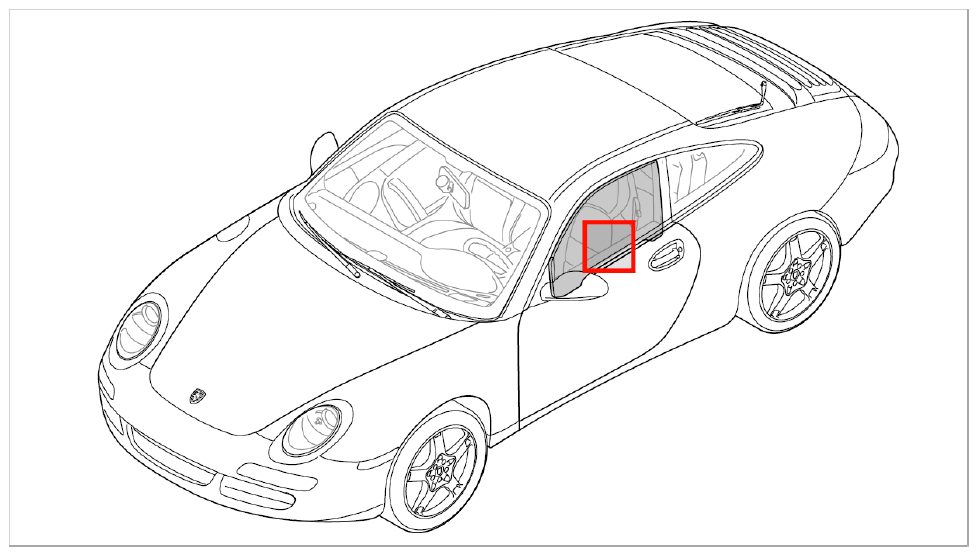

Fig 1: Identifying Position Of Front Door Window

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

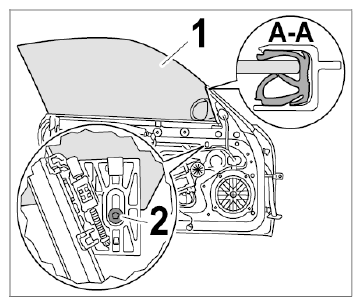

Slide door window -1- all the way forward into the window channel -section A - A- and screw down the fastening screw -2- on the front clamping jaw. Tightening torque → Final tightening: 8.5 Nm (ftlb.) (6.25)+/-1.5 Nm (ftlb.) (+/- 1) .

Fig 2: Securing Front Door Window
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

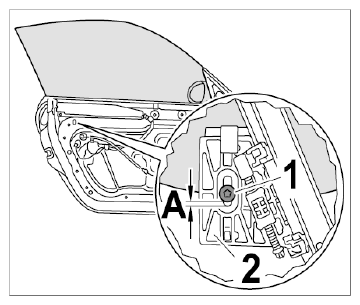

Raise rear clamping jaw -2- approx. 4 mm -A- and screw down fastening screw -1- . Tightening torque → Final tightening: 8.5 Nm (ftlb.) (6.25)+/-1.5 Nm (ftlb.) (+/-1) .

Fig 3: Securing Door Window
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
