Installing Front Door Window: Notes

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Dirty door window glass installed

Risk of irreparable damage to front window channel seal

→ During installation, make sure that no lubricant from the window guides gets on to the door window glass.

→ Clean the door window glass and check that the front window channel seal is clean.

→ Replace damaged window channel seal.

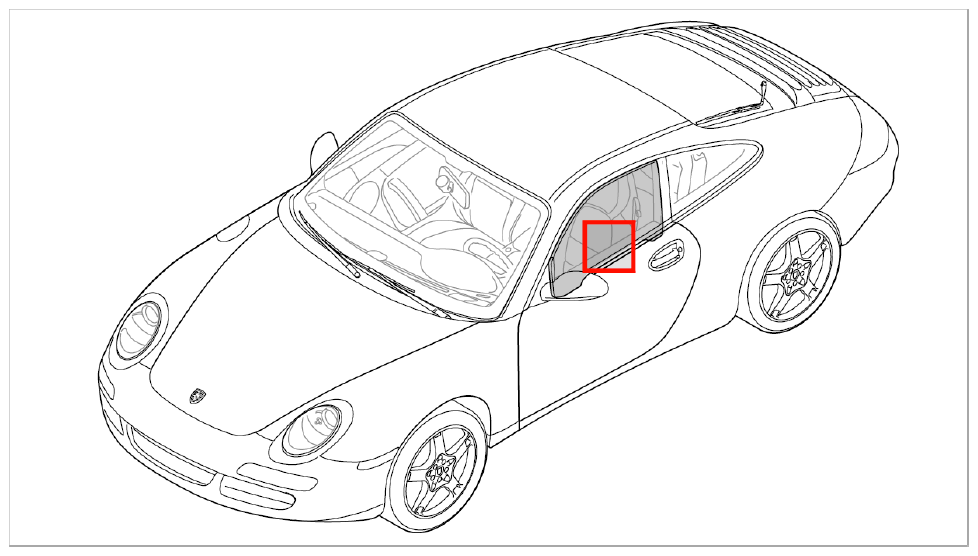

Fig 1: Identifying Position Of Front Door Window

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Insert front door window -1- into the door channel -Arrows- and position in the clamping jaws -2- .

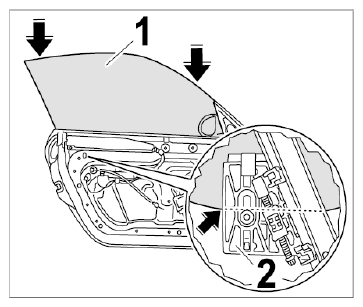

Fig 2: Installing Front Door Window
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Press the door window down as far as it will go -Arrow- into the clamping jaws.
